EIGRP Named - Redistribution

Redistribution

EIGRP Named Redistribution is a feature in Enhanced Interior Gateway Routing Protocol (EIGRP) that allows network administrators to selectively and precisely control the redistribution of routes between different routing domains. This feature is facilitated by the named mode capability, where administrators can specify named route maps to define redistribution policies. Named redistribution provides a more granular and organized approach, allowing for specific control over which routes are redistributed and under what conditions. This enhances network flexibility, enabling administrators to tailor the redistribution process to meet the specific requirements of their network design. EIGRP Named Redistribution plays a crucial role in maintaining efficient routing and ensuring seamless integration of diverse routing domains within the EIGRP environment.

Lab:

Disclaimer

This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an Dzas isdz basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.

Cisco IOS Software, Linux Software (I86BI_LINUX-ADVENTERPRISEK9-M), Version 15.2(4)M1, DEVELOPMENT TEST SOFTWARE

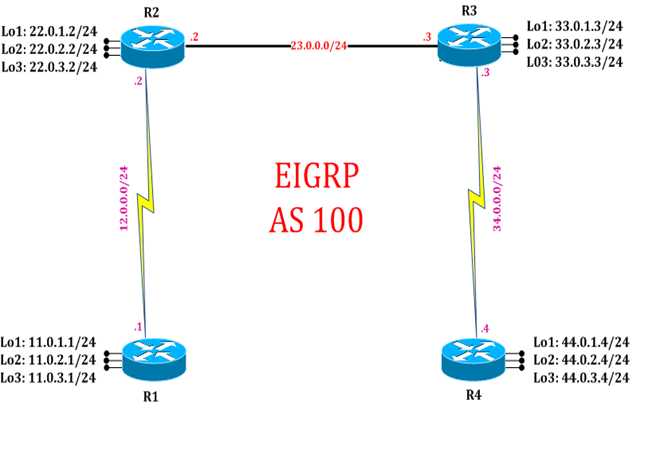

Task 1: Configure IPv4 EIGRP Redistribution using named configuration

Step 1: In the configuration mode of router configure 4 loopbacks with network address in sequence

R1:
interface loopback 101
ip address 101.101.101.101 255.255.255.0
interface loopback 102
ip address 102.102.102.102 255.255.255.0
interface loopback 103
ip address 103.103.103.103 255.255.255.0
interface loopback 104
ip address 104.104.104.104 255.255.255.0

Step 2: enter address-family interface mode and redistribute EIGRP routes in topology base configuration mode

R1:
router eigrp cisco
address-family ipv4 autonomous-system 100
topology base
redistribute connected
exit

Task 2: Verification:

Step 1: Verify route in neighbors router routing table by following command:

R2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       + - replicated route, % - next hop override

Gateway of last resort is not set

      11.0.0.0/8 is variably subnetted, 7 subnets, 3 masks
D        11.0.0.0/22 is a summary, 01:13:07, Null0
C        11.0.1.0/24 is directly connected, Loopback1
L        11.0.1.1/32 is directly connected, Loopback1
C        11.0.2.0/24 is directly connected, Loopback2
L        11.0.2.1/32 is directly connected, Loopback2
C        11.0.3.0/24 is directly connected, Loopback3
L        11.0.3.1/32 is directly connected, Loopback3
      12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        12.0.0.0/24 is directly connected, Serial2/0
L        12.0.0.1/32 is directly connected, Serial2/0
      12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        12.0.0.0/24 is directly connected, Serial2/0
L        12.0.0.1/32 is directly connected, Serial2/0
      22.0.0.0/24 is subnetted, 3 subnets
D        22.0.1.0 [90/13556702] via 12.0.0.2, 02:09:27, Serial2/0
D        22.0.2.0 [90/13556702] via 12.0.0.2, 02:09:22, Serial2/0
D        22.0.3.0 [90/13556702] via 12.0.0.2, 02:09:18, Serial2/0
      23.0.0.0/24 is subnetted, 1 subnets
D        23.0.0.0 [90/14068062] via 12.0.0.2, 02:09:35, Serial2/0
      33.0.0.0/24 is subnetted, 3 subnets
D        33.0.1.0 [90/14068702] via 12.0.0.2, 00:23:42, Serial2/0
D        33.0.2.0 [90/14068702] via 12.0.0.2, 00:23:32, Serial2/0
D        33.0.3.0 [90/14068702] via 12.0.0.2, 00:23:23, Serial2/0
      34.0.0.0/24 is subnetted, 1 subnets
D        34.0.0.0 [90/24308062] via 12.0.0.2, 00:23:53, Serial2/0
      44.0.0.0/24 is subnetted, 3 subnets
D        44.0.1.0 [90/24308702] via 12.0.0.2, 00:21:34, Serial2/0
D        44.0.2.0 [90/24308702] via 12.0.0.2, 00:21:28, Serial2/0
D        44.0.3.0 [90/24308702] via 12.0.0.2, 00:21:22, Serial2/0
      101.0.0.0/24 is subnetted, 1 subnets
D EX     101.101.101.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0
      102.0.0.0/24 is subnetted, 1 subnets
D EX     102.102.102.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0
      103.0.0.0/24 is subnetted, 1 subnets
D EX     103.103.103.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0
      104.0.0.0/24 is subnetted, 1 subnets
D EX     104.104.104.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0

Step 2: Analyze administrative distance of redistribution route in neighbor router

D EX     101.101.101.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0

Step 3: Analyze network type as “Dex” in neighbor router routing table.

D EX     101.101.101.0 [170/2297856] via 12.0.0.1, 00:08:37, Serial2/0
