IPv6 - BGP (Border Gateway Protocol)
Border Gateway Protocol (BGP)
IPv6 Border Gateway Protocol (BGP) is an extension of the BGP protocol designed to support the IPv6 addressing scheme. BGP, a path vector protocol, is the primary routing protocol used to exchange routing and reachability information between autonomous systems on the Internet. IPv6 BGP operates similarly to its IPv4 counterpart, utilizing the same fundamental principles of BGP, such as the establishment of peer relationships, route advertisement, and path selection. It allows Internet Service Providers (ISPs) and large organizations to manage routing between their networks using the expanded IPv6 address space. IPv6 BGP plays a crucial role in enabling global IPv6 connectivity, facilitating the exchange of routing information and ensuring efficient and reliable routing across the IPv6 Internet. As with IPv4 BGP, careful configuration and management are essential to maintaining a stable and secure IPv6 BGP environment.

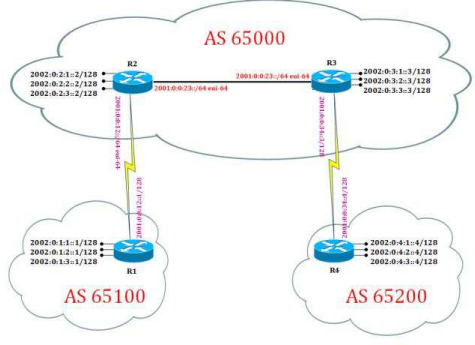

Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.
Cisco IOS Software, 7200 Software (C7200-ADVENTERPRISEK9-M), Version 15.0(1)M9, RELEASE SOFTWARE (fc1)
R1 Router Config:
!
ipv6 unicast-routing
!
interface Loopback0
no ip address
ipv6 address 2002:0:1:1::1/128
ipv6 ospf 1 area 0
!
interface Loopback1
no ip address
ipv6 address 2002:0:1:2::1/128
ipv6 ospf 1 area 0
!
interface Loopback2
no ip address
ipv6 address 2002:0:1:3::1/128
ipv6 ospf 1 area 0
!
interface Serial1/0
no ip address
ipv6 address 2001:0:0:12::1/128
ipv6 ospf 1 area 0
no fair-queue
serial restart-delay 0
!
router bgp 65100
bgp router-id 1.1.1.1
no bgp default ipv4-unicast
bgp log-neighbor-changes
neighbor 2002:0:2:1::2 remote-as 65000
neighbor 2002:0:2:1::2 ebgp-multihop 5
neighbor 2002:0:2:1::2 update-source
Loopbac0
address-family ipv6
network 2002:0:1:2::1/128
network 2002:0:1:3::1/128
neighbor 2002:0:2:1::2 activate
exit-address-family
!
ipv6 router ospf 1
router-id 1.1.1.1
log-adjacency-changes
R4 Router Config:
!
ipv6 unicast-routing
!
interface Loopback0
no ip address
ipv6 address 2002:0:4:1::4/128
ipv6 ospf 1 area 0
!
interface Loopback1
no ip address
ipv6 address 2002:0:4:2::4/128
ipv6 ospf 1 area 0
!
interface Loopback2
no ip address
ipv6 address 2002:0:4:3::4/128
ipv6 ospf 1 area 0
!
interface Serial1/0
no ip address
ipv6 address 2001:0:0:34::4/128
ipv6 ospf 1 area 0
serial restart-delay 0
clock rate 64000
!
router bgp 65200
bgp router-id 4.4.4.4
no bgp default ipv4-unicast
bgp log-neighbor-changes
neighbor 2002:0:3:1::3 remote-as 65000
neighbor 2002:0:3:1::3 ebgp-multihop 5
neighbor 2002:0:3:1::3 update-source
Loopback0
address-family ipv6
network 2002:0:4:2::4/128
network 2002:0:4:3::4/128
neighbor 2002:0:3:1::3 activate
exit-address-family
!
ipv6 router ospf 1
router-id 4.4.4.4
log-adjacency-changes
R2 Router Config:
!
ipv6 unicast-routing
!
interface Loopback0
no ip address
ipv6 address 2002:0:2:1::2/128
ipv6 ospf 1 area 0
!
interface Loopback1
no ip address
ipv6 address 2002:0:2:2::2/128
ipv6 ospf 1 area 0
!
interface Loopback2
no ip address
ipv6 address 2002:0:2:3::2/128
ipv6 ospf 1 area 0
!
interface Serial1/0
no ip address
ipv6 address 2001:0:0:12::/64 eui-64
ipv6 ospf 1 area 0
no fair-queue
serial restart-delay 0
clock rate 64000
!
interface FastEthernet2/0
no ip address
duplex full
speed 100
ipv6 address 2001:0:0:23::/64 eui-64
ipv6 ospf 1 area 0
!
router bgp 65000
bgp router-id 2.2.2.2
no bgp default ipv4-unicast
bgp log-neighbor-changes
neighbor 2001::23:C803:6FF:FEAF:38
remote-as 65000
neighbor 2002:0:1:1::1 remote-as 65100
neighbor 2002:0:1:1::1 ebgp-multihop 5
neighbor 2002:0:1:1::1 update-source
Loopback0
address-family ipv6
network 2002:0:2:2::2/128
network 2002:0:2:3::2/128
neighbor 2001::23:C803:6FF:FEAF:38
activate
neighbor 2002:0:1:1::1 activate
exit-address-family
!
ipv6 router ospf 1
router-id 2.2.2.2
log-adjacency-changes
!
R2 Router Config:
!
ipv6 unicast-routing
!
interface Loopback0
no ip address
ipv6 address 2002:0:3:1::3/128
ipv6 ospf 1 area 0
!
interface Loopback1
no ip address
ipv6 address 2002:0:3:2::3/128
ipv6 ospf 1 area 0
!
interface Loopback2
no ip address
ipv6 address 2002:0:3:3::3/128
ipv6 ospf 1 area 0
!
interface Serial1/0
no ip address
ipv6 address 2001:0:0:34::3/128
ipv6 ospf 1 area 0
no fair-queue
serial restart-delay 0
clock rate 64000
!
interface FastEthernet2/0
no ip address
duplex auto
speed auto
ipv6 address 2001:0:0:23::/64 eui-64
ipv6 ospf 1 area 0
!
router bgp 65000
bgp router-id 3.3.3.3
no bgp default ipv4-unicast
bgp log-neighbor-changes
neighbor 2001::23:C802:6FF:FEAF:38
remote-as 65000
neighbor 2002:0:4:1::4 remote-as 65200
neighbor 2002:0:4:1::4 ebgp-multihop 5
neighbor 2002:0:4:1::4 update-source
Loopback0
address-family ipv6
network 2002:0:3:2::3/128
network 2002:0:3:3::3/128
neighbor 2001::23:C802:6FF:FEAF:38
activate
neighbor 2002:0:4:1::4 activate
exit-address-family
!
ipv6 router ospf 1
router-id 3.3.3.3
log-adjacency-changes
!
Note: R1(config-router)#neighbor FE80::C802:6FF:FEAF:0 remote-as 65000 % BGP(v6): Invalid scope. Unable to configure link-local peer. (In BGP Link local address can not be used by default for making BGP neighborship)
Verification:
R1#sh bgp ipv6 unicast neighbors
BGP neighbor is 2002:0:2:1::2, remote AS 65000, external link (IPv6 address of peer with which neighborship has
been formed, AS no. to which neigbor belongs, whether link is in other AS or same AS [external link – eBGP
neighbor, internal link – iBGP neighbor])
BGP version 4, remote router ID 2.2.2.2 (version of BGP, peer router ID)
Session state = Established, up for 00:06:22 (Neigborship state with peer [Established-neighborship successfully
formed, Active-I am sending BGP hello waiting for peer response, Idle-I am trying to establish TCP connection with
peer)
Last read 00:00:51, last write 00:00:10, hold time is 180, keepalive interval is 60 seconds (hold time=Dead Timer,
keepalive interval=Hello Timer)
——-<output omitted>———–
R2#sh bgp ipv6 unicast neighbors
BGP neighbor is 2001::23:C803:6FF:FEAF:38, remote AS 65000, internal link
BGP version 4, remote router ID 3.3.3.3
Session state = Established, up for 00:05:10
Last read 00:00:46, last write 00:00:16, hold time is 180, keepalive interval is 60 seconds
——-<output omitted>———–
BGP neighbor is 2002:0:1:1::1, remote AS 65100, external link
BGP version 4, remote router ID 1.1.1.1
BGP state = Established, up for 00:02:31
Last read 00:00:46, last write 00:00:26, hold time is 180, keepalive interval is 60 seconds
——-<output omitted>———–
R3#sh bgp ipv6 unicast neighbors
BGP neighbor is 2001::23:C802:6FF:FEAF:38, remote AS 65000, internal link
BGP version 4, remote router ID 2.2.2.2
Session state = Established, up for 00:05:10
Last read 00:00:16, last write 00:00:46, hold time is 180, keepalive interval is 60 seconds
——-<output omitted>———–
BGP neighbor is 2002:0:4:1::4, remote AS 65200, external link
BGP version 4, remote router ID 4.4.4.4
BGP state = Established, up for 00:03:57
Last read 00:00:24, last write 00:00:02, hold time is 180, keepalive interval is 60 seconds
——-<output omitted>———–
R4#sh bgp ipv6 unicast neighbors
BGP neighbor is 2002:0:3:1::3, remote AS 65000, external link
BGP version 4, remote router ID 3.3.3.3
Session state = Established, up for 00:04:24
Last read 00:00:43, last write 00:00:48, hold time is 180, keepalive interval is 60 seconds
——-<output omitted>———–
R1#sh bgp ipv6 unicast
BGP table version is 9, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network Next Hop Metric LocPrf Weight Path
*> 2002:0:1:2::1/128 :: 0 32768 i
*> 2002:0:1:3::1/128 :: 0 32768 i
*> 2002:0:2:2::2/128 2002:0:2:1::2 0 0 65000 i
*> 2002:0:2:3::2/128 2002:0:2:1::2 0 0 65000 i
*> 2002:0:3:2::3/128 2002:0:2:1::2 0 0 65000 i
*> 2002:0:3:3::3/128 2002:0:2:1::2 0 0 65000 i
*> 2002:0:4:2::4/128 2002:0:2:1::2 0 0 65000 65200 i
*> 2002:0:4:3::4/128 2002:0:2:1::2 0 0 65000 65200 i
(Network: Announced network on router or network received via BGP neighbor ; Next Hop: IPv6 address to which a packet received for this network should be forwarded ; Metic: MED attribue of BGP ; LocPrf: local preference attribute of BGP ; Weight: weight attribute of BGP ; Path: AS numbers from where the route has passed before coming to this router)
R2#sh bgp ipv6 unicast
BGP table version is 9, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network Next Hop Metric LocPrf Weight Path
*> 2002:0:1:2::1/128 2002:0:1:1::1 0 0 65100 i
*> 2002:0:1:3::1/128 2002:0:1:1::1 0 0 65100 i
*> 2002:0:2:2::2/128 :: 0 32768 i
*> 2002:0:2:3::2/128 :: 0 32768 i
*>i2002:0:3:2::3/128 2001::23:C803:6FF:FEAF:38 0 100 0 i
*>i2002:0:3:3::3/128 2001::23:C803:6FF:FEAF:38 0 100 0 i
*>i2002:0:4:2::4/128 2002:0:4:1::4 0 100 0 65200 i
*>i2002:0:4:3::4/128 2002:0:4:1::4 0 100 0 65200 i
R3#sh bgp ipv6 unicast
BGP table version is 9, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network Next Hop Metric LocPrf Weight Path
*>i2002:0:1:2::1/128 2002:0:1:1::1 0 100 0 65100 i
*>i2002:0:1:3::1/128 2002:0:1:1::1 0 100 0 65100 i
*>i2002:0:2:2::2/128 2001::23:C802:6FF:FEAF:38 0 100 0 i
*>i2002:0:2:3::2/128 2001::23:C802:6FF:FEAF:38 0 100 0 i
*> 2002:0:3:2::3/128 :: 0 32768 i
*> 2002:0:3:3::3/128 :: 0 32768 i
*> 2002:0:4:2::4/128 2002:0:4:1::4 0 0 65200 i
*> 2002:0:4:3::4/128 2002:0:4:1::4 0 0 65200 i
R4#sh bgp ipv6 unicast
BGP table version is 9, local router ID is 4.4.4.4
Status codes: s suppressed, d damped, h history, * valid, > best, i – internal,
r RIB-failure, S Stale
Origin codes: i – IGP, e – EGP, ? – incomplete
Network Next Hop Metric LocPrf Weight Path
*> 2002:0:1:2::1/128 2002:0:3:1::3 0 0 65000 65100 i
*> 2002:0:1:3::1/128 2002:0:3:1::3 0 0 65000 65100 i
*> 2002:0:2:2::2/128 2002:0:3:1::3 0 0 65000 i
*> 2002:0:2:3::2/128 2002:0:3:1::3 0 0 65000 i
*> 2002:0:3:2::3/128 2002:0:3:1::3 0 0 65000 i
*> 2002:0:3:3::3/128 2002:0:3:1::3 0 0 65000 i
*> 2002:0:4:2::4/128 :: 0 32768 i
*> 2002:0:4:3::4/128 :: 0 32768 i
Verification of basic BGP Rules
e-BGP neighbors should be directly connected
Changes on R1:
R1(config)#router bgp 65100
R1(config-router)#no neigh 2002:0:2:1::2 ebgp-multihop 5
(#neigh 2002:0:2:1::2 ebgp-multihop 5 increases TTL value for e-BGP by 5; By default TTL value in IP header for e-BGP is 1. So neighbors should be only one hop away or directly connected.)
Verification:
R1#sh bgp ipv6 unicast neigh
BGP neighbor is 2002:0:2:1::2, remote AS 65000, external link
BGP version 4, remote router ID 0.0.0.0
BGP state = Idle
(Neighborship stuck in Idle state i.e. TCP session can not be formed, there must be some error in my configurations)
R2#sh bgp ipv6 unicast neighbors
BGP neighbor is 2001::23:C803:6FF:FEAF:38, remote AS 65000, internal link
BGP version 4, remote router ID 0.0.0.0
BGP state = Active
(Neighborship stuck in Active state i.e. Link is up, sending BGP keepalives but none received from neighbor)
i-BGP neighbors need not to be directly connected
Changes on R2:
R2(config)#router bgp 65000
R2(config-router)#no neighbor 2001::23:C803:6FF:FEAF:38 remote-as 65000
R2(config-router)#neighbor 2002:0:3:1::3 remote-as 65000
R2(config-router)#neighbor 2002:0:3:1::3 update-source Loopback0
R2(config-router)#address-family ipv6
R2(config-router-af)#neighbor 2002:0:3:1::3 activate
Changes on R3:
R3(config)#router bgp 65000
R3(config-router)#neighbor 2001::23:C802:6FF:FEAF:38 remote-as 65000
R3(config-router)#neighbor 2002:0:2:1::2 remote-as 65000
R3(config-router)#address-family ipv6
R3(config-router-af)#neighbor 2002:0:2:1::2 activate
Verification:
R2#sh bgp ipv6 unicast neighbors
BGP neighbor is 2002:0:3:1::3, remote AS 65000, internal link
BGP version 4, remote router ID 3.3.3.3
BGP state = Established, up for 00:02:16
Last read 00:00:26, last write 00:00:21, hold time is 180, keepalive interval is 60 seconds
R3#sh bgp ipv6 unicast neighbors
BGP neighbor is 2002:0:2:1::2, remote AS 65000, internal link
BGP version 4, remote router ID 2.2.2.2
BGP state = Established, up for 00:01:09
Last read 00:00:11, last write 00:00:17, hold time is 180, keepalive interval is 60 seconds
(On router R3, even we do not need to tell which source to use, R3 just replies by source IP which has been addressed by R2 in its keepalive.)
