MPLS - Carrier Supporting Carrier
Carrier Supporting Carrier
Carrier Supporting Carrier (CSC) is a networking concept where one service provider, known as the "supporting carrier," provides connectivity services to another service provider, referred to as the "supported carrier." This framework is often used in the telecommunications industry to enable a smaller or regional service provider to offer global connectivity services without establishing a worldwide network infrastructure. The supporting carrier extends its network reach and resources to the supported carrier, allowing the latter to provide connectivity services to its customers on a broader scale. MPLS (Multiprotocol Label Switching) technology is commonly employed in Carrier Supporting Carrier implementations, facilitating efficient and secure transport of data across the interconnected networks. CSC is a strategic approach that promotes collaboration and resource sharing among service providers, enabling them to deliver comprehensive and extended services to their customers without the need for significant infrastructure investments.

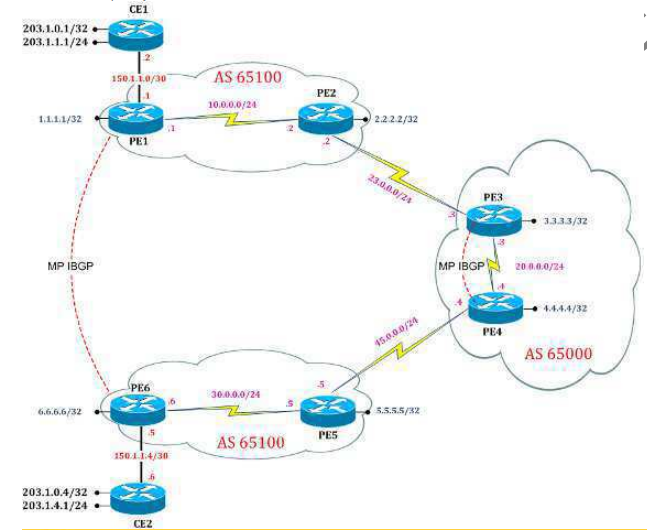

Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.
CE1 Router:
ip cef!
interface Loopback1
ip address 203.1.0.1 255.255.255.255
!
interface Loopback2
ip address 203.1.1.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.1.2 255.255.255.252
!
ip route 0.0.0.0 0.0.0.0 150.1.1.1
!
end
CE2 Router:
ip cef
!
interface Loopback1
ip address 203.1.0.4 255.255.255.255
!
interface Loopback2
ip address 203.1.4.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.1.6 255.255.255.252
!
ip route 0.0.0.0 0.0.0.0 150.1.1.5
!
end
PE1 Router:
ip cef!
ip vrf vpna
rd 3:1
route-target export 3:1
route-target import 3:1
!
mpls label protocol ldp
!
interface Loopback1
ip address 1.1.1.1 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpna
ip address 150.1.1.1 255.255.255.252
!
interface Serial2/0
ip address 10.0.0.1 255.255.255.0
mpls ip
!
router ospf 1
network 1.1.1.1 0.0.0.0 area 0
network 10.0.0.0 0.0.0.255 area 0
!
router bgp 65100
no synchronization
neighbor 6.6.6.6 remote-as 65100
neighbor 6.6.6.6 update-source Loopback1
no auto-summary
!
address-family vpnv4
neighbor 6.6.6.6 activate
neighbor 6.6.6.6 send-community extended
exit-address-family
!
address-family ipv4 vrf vpna
redistribute connected
redistribute static
no synchronization
exit-address-family
!
ip route vrf vpna 203.1.0.1 255.255.255.255
150.1.1.2
ip route vrf vpna 203.1.1.0 255.255.255.0 150.1.1.2
!
mpls ldp router-id Loopback1
!
end
PE6 Router:
ip cef!ip vrf vpna
rd 3:1
route-target export 3:1
route-target import 3:1
!
mpls label protocol ldp
!
interface Loopback1
ip address 6.6.6.6 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpna
ip address 150.1.1.5 255.255.255.252
!
interface Serial2/0
ip address 30.0.0.6 255.255.255.0
mpls ip
!
router ospf 1
network 6.6.6.6 0.0.0.0 area 0
network 30.0.0.6 0.0.0.0 area 0
!
router bgp 65100
no synchronization
neighbor 1.1.1.1 remote-as 65100
neighbor 1.1.1.1 update-source Loopback1
no auto-summary
!
address-family vpnv4
neighbor 1.1.1.1 activate
neighbor 1.1.1.1 send-community extended
exit-address-family
!
address-family ipv4 vrf vpna
redistribute connected
redistribute static
no synchronization
exit-address-family
!
ip route vrf vpna 203.1.0.4 255.255.255.255
150.1.1.6
ip route vrf vpna 203.1.4.0 255.255.255.0 150.1.1.6
!
mpls ldp router-id Loopback1
!
end
PE2 Router:
ip cef!mpls label protocol ldp
!
interface Loopback1
ip address 2.2.2.2 255.255.255.255
!
interface Serial2/0
ip address 10.0.0.2 255.255.255.0
mpls ip
!
interface Serial2/1
ip address 23.0.0.2 255.255.255.0
!
router ospf 1
redistribute bgp 65100 metric 10 subnets
network 2.2.2.2 0.0.0.0 area 0
network 10.0.0.0 0.255.255.255 area 0
network 23.0.0.0 0.255.255.255 area 0
!
router bgp 65100
no synchronization
redistribute ospf 1 metric 10 match internal external 1
external 2
neighbor 23.0.0.3 remote-as 65000
neighbor 23.0.0.3 send-label
no auto-summary
!
mpls ldp router-id Loopback1
!
end
PE5 Router:
ip cef!mpls label protocol ldp
!
interface Loopback1
ip address 5.5.5.5 255.255.255.255
!
interface Serial2/0
ip address 30.0.0.5 255.255.255.0
mpls ip
!
interface Serial2/1
ip address 45.0.0.5 255.255.255.0
!
router ospf 1
redistribute bgp 65100 metric 10 subnets
network 5.5.5.5 0.0.0.0 area 0
network 30.0.0.0 0.255.255.255 area 0
network 45.0.0.0 0.255.255.255 area 0
!
router bgp 65100
no synchronization
redistribute ospf 1 metric 10 match internal external 1
external 2
neighbor 45.0.0.4 remote-as 65000
neighbor 45.0.0.4 send-label
no auto-summary
!
mpls ldp router-id Loopback1
!
end
PE3 Router:
ip cef!ip vrf SP1-vpna
rd 3:11
route-target export 3:11
route-target import 3:11
!
mpls label protocol ldp
!
interface Loopback1
ip address 3.3.3.3 255.255.255.255
!
interface Serial2/0
ip address 20.0.0.3 255.255.255.0
mpls ip
!
interface Serial2/1
ip vrf forwarding SP1-vpna
ip address 23.0.0.3 255.255.255.0
!
router ospf 64
network 3.3.3.3 0.0.0.0 area 0
network 20.0.0.0 0.255.255.255 area 0
!
router bgp 65000
no synchronization
neighbor 4.4.4.4 remote-as 65000
neighbor 4.4.4.4 update-source Loopback1
no auto-summary
!
address-family vpnv4
neighbor 4.4.4.4 activate
neighbor 4.4.4.4 send-community extended
exit-address-family
!
address-family ipv4 vrf SP1-vpna
redistribute connected
neighbor 23.0.0.2 remote-as 65100
neighbor 23.0.0.2 activate
neighbor 23.0.0.2 as-override
neighbor 23.0.0.2 send-label
no synchronization
exit-address-family
!
mpls ldp router-id Loopback1 force
!
end
PE4 Router:
ip cef!ip vrf SP1-vpna
rd 3:11
route-target export 3:11
route-target import 3:11
!
mpls label protocol ldp
!
interface Loopback1
ip address 4.4.4.4 255.255.255.255
!
interface Serial2/0
ip address 20.0.0.4 255.255.255.0
mpls ip
!
interface Serial2/1
ip vrf forwarding SP1-vpna
ip address 45.0.0.4 255.255.255.0
!
router ospf 64
network 4.4.4.4 0.0.0.0 area 0
network 20.0.0.0 0.255.255.255 area 0
!
router bgp 65000
no synchronization
neighbor 3.3.3.3 remote-as 65000
neighbor 3.3.3.3 update-source Loopback1
no auto-summary
!
address-family vpnv4
neighbor 3.3.3.3 activate
neighbor 3.3.3.3 send-community extended
exit-address-family
!
address-family ipv4 vrf SP1-vpna
redistribute connected
neighbor 45.0.0.5 remote-as 65100
neighbor 45.0.0.5 activate
neighbor 45.0.0.5 as-override
neighbor 45.0.0.5 send-label
no synchronization
exit-address-family
!
mpls ldp router-id Loopback1 force
!
end
PE4 Router:
ip cef
!
ip vrf vpnc
rd 3:30
route-target export 3:30
route-target import 3:30
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.4 255.255.255.255
!
interface Loopback30
ip vrf forwarding vpnc
ip address 60.60.60.60 255.255.255.255
!
interface FastEthernet0/0
description *** Link to A4 ***
ip vrf forwarding vpnc
ip address 150.1.31.17 255.255.255.252
!
interface Serial2/1
description *** Link to PE3 ***
ip address 192.168.3.9 255.255.255.252
no ip directed-broadcast
tag-switching ip
!
router ospf 30 vrf vpnc
router-id 60.60.60.60
area 0 sham-link 60.60.60.60 30.30.30.30
cost 10
redistribute bgp 3 subnets
network 150.1.0.0 0.0.255.255 area 0
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
no synchronization
bgp log-neighbor-changes
network 192.168.3.4 mask 255.255.255.255
neighbor 192.168.3.3 remote-as 3
neighbor 192.168.3.3 update-source
Loopback0
no auto-summary
!
address-family vpnv4
neighbor 192.168.3.3 activate
neighbor 192.168.3.3 send-community
extended
exit-address-family
!
address-family ipv4 vrf vpnc
redistribute ospf 30 vrf vpnc
no synchronization
network 60.60.60.60 mask 255.255.255.255
exit-address-family
!
tag-switching tdp router-id Loopback0
!
end
