MPLS - Complex MPLS VPN with OSPF

Complex MPLS VPN with OSPF

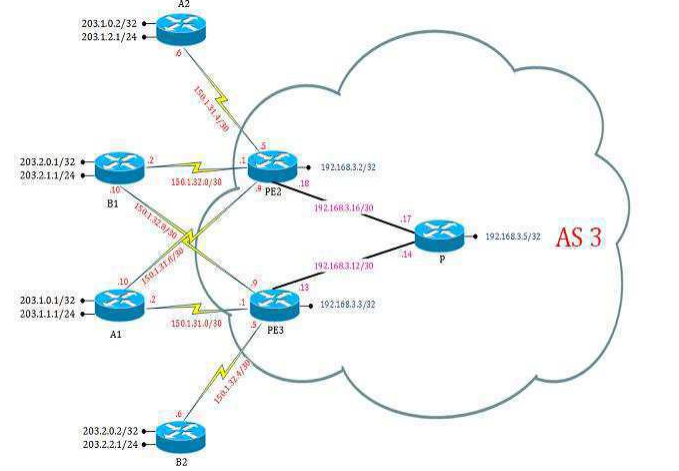

A Complex MPLS (Multiprotocol Label Switching) VPN with OSPF (Open Shortest Path First) involves the integration of two powerful networking technologies to provide secure and scalable communication across multiple geographically dispersed sites. In this scenario, OSPF is employed as the interior gateway protocol to exchange routing information within the MPLS-based VPN infrastructure. OSPF dynamically establishes and maintains routing tables, facilitating efficient and adaptive routing decisions within the VPN. The MPLS framework ensures the secure transport of data between the Provider Edge (PE) routers, enabling the creation of isolated Virtual Private Networks (VPNs) for different customers or network segments. Complex MPLS VPNs with OSPF offer robust solutions for large enterprises or service providers seeking a scalable and flexible network architecture. The combination of MPLS VPNs and OSPF enhances the efficiency, security, and manageability of interconnecting diverse networks within a complex infrastructure.

Lab:

Disclaimer

This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental. IOS used: c7200-p-mz.120-32.S.bin

Task 1: BASIC OSPF and MPLS setup

Configure OSPF and MPLS on all PE-routers and P-router

Step 1: Configure following on respective P and PE routers:

PE2 Router Initial Config:
hostname PE2
!
ip cef
mpls label protocol ldp
no tag-switching ip propagate-ttl
!
interface Loopback0
ip address 192.168.3.2 255.255.255.255
!
interface FastEthernet1/0
description **link_to_P**
ip address 192.168.3.18 255.255.255.252
tag-switching ip
no shutdown
!
interface Serial2/0
description **link_to_A2**
ip address 150.1.31.5 255.255.255.252
no shutdown
!
interface Serial2/1
description **link_to_B1**
ip address 150.1.32.1 255.255.255.252
no shutdown
!
interface Serial2/2
description **link_to_A1**
ip address 150.1.31.9 255.255.255.252
no shutdown
!
router ospf 64
log-adjacency-changes
network 192.168.0.0 0.0.255.255 area 0
!
end

PE3 Router Initial Config:
hostname PE3
!
ip cef
mpls label protocol ldp
no tag-switching ip propagate-ttl
!
interface Loopback0
ip address 192.168.3.3 255.255.255.255
!
interface FastEthernet0/0
description **link_to_P**
ip address 192.168.3.13 255.255.255.252
tag-switching ip
no shutdown
!
interface Serial2/0
description **link_to_B1**
ip address 150.1.32.9 255.255.255.252
no shutdown
!
interface Serial2/1
description **link_to_A1**
ip address 150.1.31.1 255.255.255.252
no shutdown
!
interface Serial2/2
description **link_to_B2**
ip address 150.1.32.5 255.255.255.252
no shutdown
!
router ospf 64
log-adjacency-changes
network 192.168.0.0 0.0.255.255 area 0
!
end

P Router Config:
hostname P
!
ip cef
mpls label protocol ldp
no tag-switching ip propagate-ttl
!
interface Loopback0
ip address 192.168.3.5 255.255.255.255
!
interface FastEthernet0/0
description **link_to_PE3**
ip address 192.168.3.14 255.255.255.252
tag-switching ip
no shutdown
!
interface FastEthernet1/0
description **link_to_PE2**
ip address 192.168.3.17 255.255.255.252
tag-switching ip
no shutdown
!
router ospf 64
log-adjacency-changes
network 192.168.0.0 0.0.255.255 area 0
!
end

A2 Router Initial Config:
hostname A2
!
interface Loopback0
ip address 203.1.0.2 255.255.255.255
!
interface Loopback1
ip address 203.1.2.1 255.255.255.0
!
interface Serial2/0
ip address 150.1.31.6 255.255.255.252
clock rate 64000
no shutdown
!
end

B1 Router Initial Config:
hostname B1
!
interface Loopback0
ip address 203.2.0.1 255.255.255.255
!
interface Loopback1
ip address 203.2.1.1 255.255.255.0
!
interface Serial2/0
ip address 150.1.32.10 255.255.255.252
clock rate 64000
no shutdown
!
interface Serial2/1
ip address 150.1.32.2 255.255.255.252
clock rate 64000
no shutdown
!
end

A1 Router Initial Config:
hostname A1
!
interface Loopback0
ip address 203.1.1.1 255.255.255.0
!
interface Loopback1
ip address 203.1.0.1 255.255.255.255
!
interface Serial2/1
ip address 150.1.31.2 255.255.255.252
clock rate 64000
no shutdown
!
interface Serial2/2
ip address 150.1.31.10 255.255.255.252
clock rate 64000
no shutdown
!
end

B2 Router Initial Config:
hostname B2
!
interface Loopback0
ip address 203.2.0.2 255.255.255.255
!
interface Loopback1
ip address 203.2.2.1 255.255.255.0
!
interface Serial2/2
ip address 150.1.32.6 255.255.255.252
clock rate 64000
no shutdown
!
end

Task 2: Configure Multi-protocol BGPConfigure multi-protocol BGP between provider-edge (PE) routers.

Step 1: Enable BGP sessions on all PE routers in your Service Provider backbone.

Step 2: Activate VPNv4 BGP sessions between all PE routers in your Service Provider backbone.

Configure the following on PE2 router:

PE2(config)#
router bgp 3
 neighbor 192.168.3.3 remote-as 3
 neighbor 192.168.3.3 update-source Loopback0
 !
 address-family ipv4
 no auto-summary
 no synchronization
 neighbor 192.168.3.3 activate
 network 192.168.3.2 mask 255.255.255.255
 exit-address-family
 !
 address-family vpnv4
 neighbor 192.168.3.3 activate
 neighbor 192.168.3.3 send-community extended
 exit-address-family

Configure following on PE3 router:

PE3(config)#
router bgp 3
 bgp log-neighbor-changes
 neighbor 192.168.3.2 remote-as 3
 neighbor 192.168.3.2 update-source Loopback0
 !
 address-family ipv4
 no auto-summary
 no synchronization
 neighbor 192.168.3.2 activate
 network 192.168.3.3 mask 255.255.255.255
 exit-address-family
 !
 address-family vpnv4
 neighbor 192.168.3.2 activate
 neighbor 192.168.3.2 send-community extended
 exit-address-family

Task 3: Design your VPN SolutionCreate the virtual private network (VRF) on provider edge (PE2)

PE2(config)#
ip vrf a
 rd 3:1
 route-target both 3:1
!
ip vrf a_central
 rd 3:11
 route-target both 3:1
 route-target both 3:30
!
ip vrf b_central
 rd 3:21
 route-target both 3:2
 route-target both 3:30

Create the virtual private network (VRF) on provider edge (PE3):

PE3(config)#
ip vrf a_central
 rd 3:11
 route-target both 3:1
 route-target both 3:30
!
ip vrf b
 rd 3:2
 route-target both 3:2
!
ip vrf b_central
 rd 3:21
 route-target both 3:2
 route-target both 3:30

Task 4: Create VRFs for A2, B1, A1 and B2Attach the provider edge-to-customer edge (PE-CE) link to the newly created VRFs with the following commands on PE2:

PE2(config)#
interface Serial2/0
 ip vrf forwarding a
 ip address 150.1.31.5 255.255.255.252
!
interface Serial2/1
 ip vrf forwarding b_central
 ip address 150.1.32.1 255.255.255.252
!
interface Serial2/2
 ip vrf forwarding a_central
 ip address 150.1.31.9 255.255.255.252

Note: “ip vrf forwarding name” command removes the IP address from interface, so IP address need to be re-configured.

Attach the PE-CE link to the newly created VRFs with the following commands on PE3:

PE3(config)#
interface Serial2/0
 ip vrf forwarding b_central
 ip address 150.1.32.9 255.255.255.252
!
interface Serial2/1
 ip vrf forwarding a_central
 ip address 150.1.31.1 255.255.255.252
!
interface Serial2/2
 ip vrf forwarding b
 ip address 150.1.32.5 255.255.255.252

Task 5: Configure OSPF on CE Routers

The following commands need to be entered on the A2 router:

A2(config)#
router ospf 3
 network 0.0.0.0 255.255.255.255 area 0

The following commands need to be entered on the B1 router:
B1(config)#
router ospf 3
 network 0.0.0.0 255.255.255.255 area 0

The following commands need to be entered on the A1 router:
A1(config)#
router ospf 3
 network 0.0.0.0 255.255.255.255 area 0

The following commands need to be entered on the B2 router:
B2(config)#
router ospf 3
 network 0.0.0.0 255.255.255.255 area 0

Task 6: Configure new VRFs for A2, B1, A1, B2 on PE routers

The following commands need to be entered on PE2:

PE2(config)#
Page8
router ospf 3 vrf a_central
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0
!
router ospf 4 vrf b_central
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0
!
router ospf 7 vrf a
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0

The following commands need to be entered on PE3 router:

PE3(config)#
router ospf 4 vrf b_central
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0
!
router ospf 3 vrf a_central
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0
!
router ospf 6 vrf b
 log-adjacency-changes
 redistribute bgp 3 subnets
 network 150.1.0.0 0.0.255.255 area 0

Task 7: Redistribute vrf – ospf in BGP Routing Protocol

The following commands need to be entered on PE2:

PE2(config)#
router bgp 3
 bgp log-neighbor-changes
 neighbor 192.168.3.3 remote-as 3
 neighbor 192.168.3.3 update-source Loopback0
 !
 address-family ipv4 vrf b_central
 redistribute ospf 4 vrf b_central
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf a_central
 redistribute ospf 3 vrf a_central
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf a
 redistribute ospf 7 vrf a
 no synchronization
 exit-address-family

The following commands need to be entered on PE3 router:
PE3(config)#
router bgp 3
 bgp log-neighbor-changes
 neighbor 192.168.3.2 remote-as 3
 neighbor 192.168.3.2 update-source Loopback0
 !
address-family ipv4 vrf b_central
 redistribute ospf 4 vrf b_central
 no synchronization
 exit-address-family
 !
 address-family ipv4 vrf b
 redistribute ospf 6 vrf b
 no synchronization
  exit-address-family
 !
 address-family ipv4 vrf a_central
 redistribute ospf 3 vrf a_central
 no synchronization
 exit-address-family

Verification:

Step 1: Verify the OSPF adjacency on A2, B1, A1, B2 and on PE2, PE3. Use the “show ip ospf neighbor” command. You should get a printout similar to the one below:PE3#show ip ospf neighbor

Neighbor ID     Pri     State       Dead Time     Address         Interface
192.168.3.5      1      FULL/DR     00:00:39      192.168.3.14    FastEthernet0/0
203.2.2.1        0      FULL/ -     00:00:35      150.1.32.6      Serial2/2
203.1.1.1        0      FULL/ -     00:00:35      150.1.31.2      Serial2/1
203.2.1.1        0      FULL/ -     00:00:35      150.1.32.10     Serial2/0

Step 2: Check the OSPF topology database on A1.

Use the “show ip ospf database” command. You should see router link states (resulting from OSPF connectivity between the PE and the CE router) and type-5 external link states.

A1#show ip ospf database
 OSPF Router with ID (203.1.1.1) (Process ID 3)

                Router Link States (Area 0)

Link ID       ADV Router    Age     Seq#          Checksum     Link Count
150.1.31.1    150.1.31.1    253     0x80000002    0x5ABC           2
150.1.31.9    150.1.31.9    283     0x80000002    0xFAFB           2
203.1.1.1     203.1.1.1     253     0x80000003    0x3057           6

                Type-5 AS External Link States

Link ID       ADV Router    Age     Seq#          Checksum     Link Count
150.1.31.4    150.1.31.1    199     0x80000001    0x264A       3489660931
150.1.31.4    150.1.31.9    216     0x80000001    0xF572       3489660931
150.1.32.0    150.1.31.1    153     0x80000002    0xFA18       3489660931
150.1.32.0    150.1.31.9    216     0x80000001    0x1358       3489660931
150.1.32.8    150.1.31.1    153     0x80000002    0xF079       3489660931
150.1.32.8    150.1.31.9    216     0x80000001    0x7C87       3489660931
203.1.0.2     150.1.31.1    199     0x80000001    0xD058       3489660931
203.1.0.2     150.1.31.9    216     0x80000001    0xA080       3489660931
203.1.2.1     150.1.31.1    199     0x80000001    0xC463       3489660931
203.1.2.1     150.1.31.9    216     0x80000001    0x948B       3489660931
203.2.0.1     150.1.31.1    199     0x80000001    0xCE5A       3489660931
203.2.0.1     150.1.31.9    218     0x80000001    0x9E82       3489660931
203.2.1.1     150.1.31.1    200     0x80000001    0xC364       3489660931
203.2.1.1     150.1.31.9    218     0x80000001    0x938C       3489660931

Step 3: Inspect individual link-state advertisement (LSA) on the CE router

Use “show ip ospf database type prefix” command and verify the settings of the down bit.

A1#sh ip ospf database external 150.1.31.4
         OSPF Router with ID (203.1.1.1) (Process ID 3)

                    Type-5 AS External Link States

 Routing Bit Set on this LSA
 LS age: 859
 Options: (No TOS-capability, DC)
 LS Type: AS External Link
 Link State ID: 150.1.31.4 (External Network Number )
 Advertising Router: 150.1.31.1
 LS Seq Number: 80000001
 Checksum: 0x264A
 Length: 36
 Network Mask: /30
    Metric Type: 2 (Larger than any link state path)
    TOS: 0
    Metric: 1
    Forward Address: 0.0.0.0
    External Route Tag: 3489660931
 Routing Bit Set on this LSA
 LS age: 877
 Options: (No TOS-capability, DC)
 LS Type: AS External Link
 Link State ID: 150.1.31.4 (External Network Number )
 Advertising Router: 150.1.31.9
 LS Seq Number: 80000001
 Checksum: 0xF572
 Length: 36
 Network Mask: /30
    Metric Type: 2 (Larger than any link state path)
    TOS: 0
    Metric: 1
    Forward Address: 0.0.0.0
    External Route Tag: 3489660931

Step 4: Inspect the BGP routes on the PE routersand identify the OSPF specific attributes and their meaning.

Use the “show ip bgp vpnv4 vrf name prefix” command, which will produce a printout similar to the one below:

PE3#show ip bgp vpnv4 vrf a_central 203.2.0.1
BGP routing table entry for 3:11:203.2.0.1/32, version 75
Paths: (1 available, best #1, table a_central)
 Not advertised to any peer
 Local, imported path from 3:21:203.2.0.1/32
    150.1.32.10 (via b_central) from 0.0.0.0 (192.168.3.3)
        Origin incomplete, metric 49, localpref 100, weight 32768, valid, external, best
        Extended Community: RT:3:2 RT:3:30 OSPF DOMAIN ID:0x0005:0x000000040200
            OSPF RT:0.0.0.0:2:0 OSPF ROUTER ID:150.1.32.9:512

Step 5: Inspect the OSPF routes on the PE routers and verify that the OSPF routes announced by other PE routers are not used (as indicated by the routing bit not set printout).

Step 6: Verify connectivity across VPN by using ping and trace commands on the CE routers and ping vrf and trace vrf commands on the PE routers.
