DMVPN - Open Shortest Path First (OSPF)
DMVPN OSPF
Dynamic Multipoint Virtual Private Network (DMVPN) with Open Shortest Path First (OSPF) is a networking solution that combines the benefits of DMVPN and OSPF to create a scalable and dynamic communication framework. In a DMVPN OSPF deployment, OSPF serves as the routing protocol for exchanging routing information between the DMVPN spokes and the central hub. This allows for efficient and dynamic routing in a hub-and-spoke topology. DMVPN OSPF provides advantages such as automatic tunnel establishment between spokes, simplifying the network design by eliminating the need for a full mesh configuration. It leverages OSPF's capabilities for route summarization, ensuring scalability and optimal resource utilization. This solution is commonly used in scenarios where a large number of remote sites need secure and flexible connectivity, making DMVPN OSPF a robust choice for dynamic and scalable enterprise networks.
Lab:

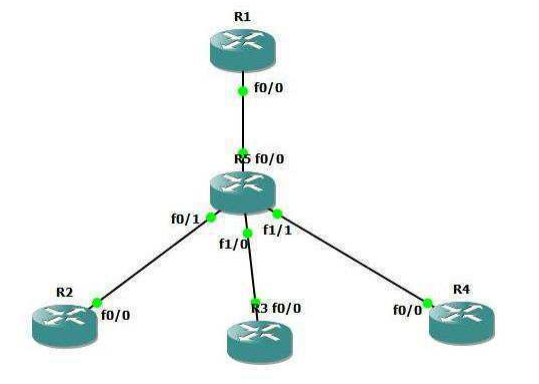

DMVPN Topology
Task 1: Configure OSPF over DMVPN Process
Step 1: In the configuration mode of router configure OSPF over DMVPN by following command:
R1:
router ospf 1
network 192.168.0.0 0.0.255.255 area 0
network 11.0.0.0 0.255.255.255 area 0
exit
interface tunnel 0
ip ospf network broadcast
ip ospf priority 255
exit
R2:
router ospf 1
network 192.168.0.0 0.0.255.255 area 0
network 22.0.0.0 0.255.255.255 area 0
exit
interface tunnel 0
ip ospf network broadcast
ip ospf priority 0
exit
R3:
router ospf 1
network 192.168.0.0 0.0.255.255 area 0
network 33.0.0.0 0.255.255.255 area 0
exit
int tunnel 0
ip ospf network broadcast
ip ospf priority 0
exit
R4:
router ospf 1
net 192.168.0.0 0.0.255.255 ar 0
net 44.0.0.0 0.255.255.255 ar 0
exit
interface tunnel 0
ip ospf network broadcast
ip ospf priority 0
Task 2: OSPF over DMVPN Verification
Step 1: Verify OSPF neighbors
R1#show ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
22.22.22.22 0 FULL/DROTHER 00:00:32 192.168.0.2 Tunnel0
33.33.33.33 0 FULL/DROTHER 00:00:36 192.168.0.3 Tunnel0
44.44.44.44 0 FULL/DROTHER 00:00:32 192.168.0.4 Tunnel0
R2#sh ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
11.11.11.11 255 FULL/DR 00:00:39 192.168.0.1 Tunnel0
R4#show ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
11.11.11.11 255 FULL/DR 00:00:30 192.168.0.1 Tunnel0
Step 2: Verify routing table and OSPF routes entries
R1#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 172.16.1.1 to network 0.0.0.0
33.0.0.0/32 is subnetted, 1 subnets
O 33.33.33.33 [110/1001] via 192.168.0.3, 00:09:31, Tunnel0
172.16.0.0/30 is subnetted, 1 subnets
C 172.16.1.0 is directly connected, FastEthernet0/0
22.0.0.0/32 is subnetted, 1 subnets
O 22.22.22.22 [110/1001] via 192.168.0.2, 00:07:00, Tunnel0
11.0.0.0/24 is subnetted, 1 subnets
C 11.11.11.0 is directly connected, Loopback1
C 192.168.0.0/24 is directly connected, Tunnel0
44.0.0.0/32 is subnetted, 1 subnets
O 44.44.44.44 [110/1001] via 192.168.0.4, 00:09:31, Tunnel0
S* 0.0.0.0/0 [1/0] via 172.16.1.1
R2#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 172.16.2.1 to network 0.0.0.0
33.0.0.0/32 is subnetted, 1 subnets
O 33.33.33.33 [110/1001] via 192.168.0.3, 00:05:15, Tunnel0
172.16.0.0/30 is subnetted, 1 subnets
C 172.16.2.0 is directly connected, FastEthernet0/0
22.0.0.0/24 is subnetted, 1 subnets
C 22.22.22.0 is directly connected, Loopback1
11.0.0.0/32 is subnetted, 1 subnets
O 11.11.11.11 [110/1001] via 192.168.0.1, 00:05:15, Tunnel0
C 192.168.0.0/24 is directly connected, Tunnel0
44.0.0.0/32 is subnetted, 1 subnets
O 44.44.44.44 [110/1001] via 192.168.0.4, 00:05:15, Tunnel0
S* 0.0.0.0/0 [1/0] via 172.16.2.1
Step 3: Verify DMVPN Tunnel creation
R1#show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
=======================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Hub, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.2.2 192.168.0.2 UP 01:35:07 D
1 172.16.3.2 192.168.0.3 UP 01:35:01 D
1 172.16.4.2 192.168.0.4 UP 01:35:02 D
R2#show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
========================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Spoke, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.1.2 192.168.0.1 UP 00:55:53 S
R2#ping 192.168.0.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.0.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 196/261/340 ms
R2#traceroute 192.168.0.4 source loopback 1
Type escape sequence to abort.
Tracing the route to 192.168.0.4
1 192.168.0.1 396 msec 508 msec
192.168.0.4 392 msec
Spoke router R2 is able to reach R4 via Hub router. A packet destined from R2 to R4 would need to be routed through R1, to exit the R2 tunnel and the get re-encapsulated to enter the R4 tunnel
R2#show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
=======================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Spoke, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.1.2 192.168.0.1 UP 00:57:01 S
1 172.16.3.2 192.168.0.3 UP 00:51:50 D
Notice that the tunnel to R4 has been flagged as dynamic, in contrast to the static tunnel to the hub/NHS.
R2# ping 192.168.0.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.0.4, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 156/189/220 ms
R2#traceroute 192.168.0.4 source loopback 1
Type escape sequence to abort.
Tracing the route to 192.168.0.4
1 192.168.0.4 396 msec 508 msec
Once the dynamically tunnel is formed between spoke to spoke router, DMVPN allows to Spoke to Spoke directly communication at next hop thus bypassing the Hub router completely
R2#show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
=======================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Spoke, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.1.2 192.168.0.1 UP 00:58:55 S
1 172.16.3.2 192.168.0.3 UP 00:53:43 D
1 172.16.4.2 192.168.0.4 UP 00:56:37 D
R3#show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
=======================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Spoke, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.1.2 192.168.0.1 UP 01:00:16 S
1 172.16.2.2 192.168.0.2 UP 00:55:20 D
1 172.16.4.2 192.168.0.4 UP 00:00:03 D
R4#sh dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
=======================================================================
Interface: Tunnel0, IPv4 NHRP Details
Type:Spoke, NHRP Peers:3,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 172.16.1.2 192.168.0.1 UP 01:00:41 S
1 172.16.2.2 192.168.0.2 UP 00:58:41 D
1 172.16.3.2 192.168.0.3 UP 00:00:31 D
DMVPN Tunnel from one to spoke to every other spoke is dynamically formed thus direct communication from spoke to spoke is possible
