MPLS - EoMPLS Carrying One VLAN
EoMPLS Carrying One VLAN
Ethernet over MPLS (EoMPLS) carrying a single VLAN involves the transport of Ethernet frames associated with a specific VLAN across an MPLS network. In this setup, MPLS labels are used to encapsulate and forward VLAN-tagged traffic between two endpoints, enabling the extension of Layer 2 connectivity over a service provider's MPLS infrastructure. EoMPLS carrying one VLAN is particularly valuable in scenarios where organizations seek to interconnect geographically dispersed sites while maintaining VLAN segmentation. This approach allows for the secure and efficient transfer of VLAN-tagged frames across the MPLS network, providing a seamless and scalable solution for maintaining VLAN-specific communication between remote locations. The careful configuration and coordination of VLAN settings between the connected devices and the MPLS infrastructure are essential to ensure the proper handling and integrity of the VLAN-tagged Ethernet frames during transit.
Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.

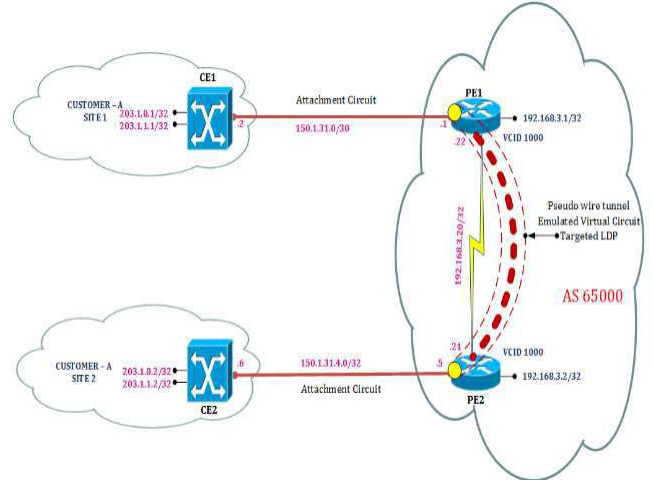

Basic information: Here, an 802.1Q trunk is established between CE and PE. Each VLAN is mapped to one Pseudowire.
CE1 Router:
int f0/0
no ip address
!
int f 0/0.100
encapsulation dot1q 100
ip address 10.100.1.1 255.255.255.252
!
int f 0/0.200
encapsulation dot1q 200
ip address 10.200.1.1 255.255.255.252
!
CE2 Router:
int f0/0
no ip address
!
int f 0/0.100
encapsulation dot1q 100
ip address 10.100.1.2 255.255.255.252
!
int f 0/0.200
encapsulation dot1q 200
ip address 10.200.1.2 255.255.255.252
!
PE1 Router:
ip cef
mpls label protocol ldp
!
int loop 0
ip add 192.168.3.1 255.255.255.255
ip ospf 1 area 0
!
int f0/0
no ip address
!
int f 0/0.100
encapsulation dot1q 100
no ip address
xconnect 192.168.3.2 1000 encapsulation mpls
!
int f 0/0.200
encapsulation dot1q 200
no ip address
xconnect 192.168.3.2 2000 encapsulation mpls
!
interface Serial2/0
ip address 192.168.3.22 255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0 force
!
end
PE2 Router:
ip cef
mpls label protocol ldp
!
int loop 0
ip add 192.168.3.2 255.255.255.255
ip ospf 1 area 0
!
int f0/0
no ip address
!
int f 0/0.100
encapsulation dot1q 100
no ip address
xconnect 192.168.3.1 1000 encapsulation mpls
!
int f 0/0.200
encapsulation dot1q 200
no ip address
xconnect 192.168.3.1 2000 encapsulation mpls
!
interface Serial2/0
ip address 192.168.3.21 255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0 force
!
end
Verification:
The following output shows successful Pseudowire setup.
Local intf Local circuit Dest address VC ID Status
------------- ------------- ------------- ------- --------
Fa0/0.100 Eth VLAN 100 192.168.3.2 1000 UP
Fa0/0.200 Eth VLAN 200 192.168.3.2 2000 UP
PE1#sh mpls l2transport vc detail
Codes: C – connected, S – stat
Local interface: Fa0/0.100 up, line protocol up, Eth VLAN 100 up
D – EIG
Destination address: 192.168.3.2, VC ID: 1000, VC status: up
Preferred path: not configured 1, N2 – OSPF NSSA external type 2
Default path: active
Next hop: point2point E1 – OSPF external type
Output interface: Se2/0, imposed label stack {17}
Create time: 00:19:57, last status change time: 00:15:412 – IS-IS level-2
Signaling protocol: LDP, peer 192.168.3.2:0 upS-IS inter area, * – candidate default, U – per-MPLS VC labels: local 17, remote 17
Remote interface description:
C 150.1
Sequencing: receive disabled, send disabled
packet drops: receive 0, seq error 0, send 0
Local interface: Fa0/0.200 up, line protocol up, Eth VLAN 200 up
Destination address: 192.168.3.2, VC ID: 2000, VC status: up
Preferred path: not configured
Default path: active
Next hop: point2point
Output interface: Se2/0, imposed label stack {18}
Create time: 00:18:17, last status change time: 00:13:55
Signaling protocol: LDP, peer 192.168.3.2:0 up
MPLS VC labels: local 18, remote 18
Group ID: local 0, remote 0
MTU: local 1500, remote 1500
Remote interface description:
Sequencing: receive disabled, send disabled
VC statistics:
packet totals: receive 626, send 627
byte totals: receive 96474, send 97028
packet drops: receive 0, seq error 0, send 0
The following output shows the MPLS LFIB table on PE1 router. It indicates two point-to-point L2 circuits i.e. Pseudowires.
PE1#sh mpls forwarding-table
Local Outgoing Prefix Bytes tag Outgoing Next Hop
tag tag or VC or Tunnel Id switched interface
16 Pop tag 192.168.3.2/32 0 Se2/0 point2point
17 Untagged l2ckt(1000) 8020 none point2point
18 Untagged l2ckt(2000) 7218 none point2point
