MPLS - EoMPLS Carrying Simple Ethernet
EoMPLS Carrying Simple Ethernet
Ethernet over MPLS (EoMPLS) is a technology that facilitates the transparent transport of Ethernet frames over an MPLS network. When used to carry simple Ethernet, EoMPLS provides a point-to-point Ethernet connection between two sites over an MPLS infrastructure. In this scenario, Ethernet frames are encapsulated within MPLS labels, allowing them to traverse the MPLS network while maintaining the characteristics of the original Ethernet traffic. This method is commonly employed in service provider networks to extend Ethernet connectivity between customer sites. EoMPLS with simple Ethernet is particularly useful for interconnecting geographically dispersed locations in a way that appears to the connected devices as a direct Ethernet link, enabling seamless communication over the MPLS network. The simplicity and efficiency of EoMPLS make it a preferred choice for extending Ethernet connectivity in various network scenarios.

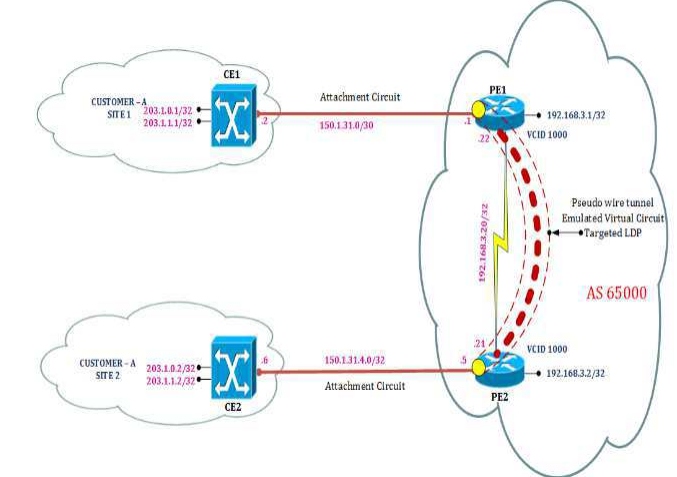

Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.
Summary: The Attachment Circuit (AC) can be Ethernet port or 802.1Q sub-interface (VLAN). For each AC, LDP signals different VC type via the targeted LDP session. VC Type 5 for Ethernet Port mode and VC Type 4 for Ethernet VLAN mode. Here, Ethernet Port mode is described. In Ethernet Port mode, a VLAN header might or might not be present on the frame. In any case, the PE router carries the frame transparently. This allows an Ethernet Trunk to be carried over a single Pseudowire.
CE1 Router:
ip cef
!
interface FastEthernet0/0
description Connected to PE1
ip address 150.1.31.2 255.255.255.252
!
end
CE2 Router:
ip cef
!
interface FastEthernet0/0
description Connected to PE1
ip address 150.1.31.6 255.255.255.252
!
end
PE1 Router:
ip cef
mpls label protocol ldp
!
pseudowire-class MPLS_Encapsulation
encapsulation mpls
!
interface Loopback0
ip address 192.168.3.1 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
description Connected to CE1
xconnect 192.168.3.2 1000 pw-class
MPLS_Encapsulation
!
interface Serial2/0
ip address 192.168.3.22 255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0 force
!
end
PE2 Router:
ip cef
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.2
255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
description Connected to CE2
xconnect 192.168.3.1 1000
encapsulation mpls
!
interface Serial2/0
ip address 192.168.3.21
255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0
force
!
end
Verification:
PE#show mpls 12transport vc
Local intf Local circuit Dest address VC ID Status
------------- ---------------- --------------- -------- ----------
Fa0/0 Ethernet 192.168.3.2 2000 UP
PE2#show mpls l2transport vc
Local intf Local circuit Dest address VC ID Status
------------- -------------------------- --------------- ---------- ----------
Fa0/0 Ethernet Ethernet 192.168.3.1 2000 UP
PE1#sh mpls l2transport vc detail
Local interface: Fa0/0 up, line protocol up, Ethernet up
Destination address: 192.168.3.2, VC ID: 2000, VC status: up
Preferred path: not configured
Default path: active
Next hop: point2point
Output interface: Se2/0, imposed label stack {17}
Create time: 00:22:38, last status change time: 00:21:57
Signaling protocol: LDP, peer 192.168.3.2:0 up
MPLS VC labels: local 17, remote 17
Group ID: local 0, remote 0
MTU: local 1500, remote 1500
Remote interface description: Connected to CE2
Sequencing: receive disabled, send disabled
VC statistics:
packet totals: receive 157, send 154
byte totals: receive 17709, send 17380
packet drops: receive 0, seq error 0, send 0
PE2#sh mpls l2transport vc detail
Local interface: Fa0/0 up, line protocol up, Ethernet up
Destination address: 192.168.3.1, VC ID: 2000, VC status: up
Preferred path: not configured
Default path: active
Next hop: point2point
Output interface: Se2/0, imposed label stack {17}
Create time: 00:23:19, last status change time: 00:23:14
Signaling protocol: LDP, peer 192.168.3.1:0 up
MPLS VC labels: local 17, remote 17
Group ID: local 0, remote 0
MTU: local 1500, remote 1500
Remote interface description: Connected to CE1
Sequencing: receive disabled, send disabled
VC statistics:
packet totals: receive 162, send 165
byte totals: receive 18238, send 18572
packet drops: receive 0, seq error 0, send 0
