EoMPLS – Pseudowire Tunnel (Ethernet Port Mode)
EoMPLS – Pseudowire Tunnel (Ethernet Port Mode)

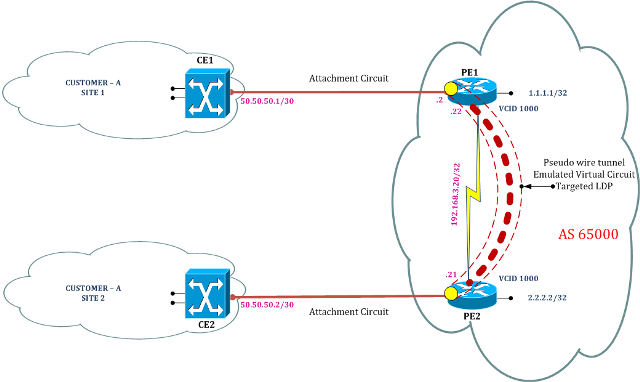

Ethernet over MPLS (EoMPLS) with Pseudowire Tunnel in Ethernet Port Mode is a technology that extends Ethernet services over a Multiprotocol Label Switching (MPLS) network. In this configuration, a pseudowire tunnel is established to create a virtual point-to-point connection between two Ethernet ports. This allows the transparent transmission of Ethernet frames across an MPLS infrastructure, enabling the connection of geographically dispersed Ethernet-based networks as if they were part of the same local network. EoMPLS in Ethernet Port Mode is particularly valuable for service providers and enterprises seeking to interconnect remote sites or data centers seamlessly, providing a scalable and efficient solution for extending Ethernet connectivity over MPLS networks. The pseudowire tunnel encapsulates Ethernet frames within MPLS packets, ensuring reliable and secure transport across the MPLS infrastructure.
Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.
CE1 Router:
ip cef
!
interface FastEthernet0/0
description Connected to PE1
ip address 50.50.50.1 255.255.255.252
!
end
CE2 Router:
ip cef
!
interface FastEthernet0/0
description Connected to PE2
ip address 50.50.50.2 255.255.255.252
!
end
PE1 Router:
ip cef
!
mpls label protocol ldp
pseudowire-class MPLS_Encapsulation
encapsulation mpls
!
interface Loopback0
ip address 1.1.1.1 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
description Connected to CE1
xconnect 2.2.2.2 1000 pw-class
MPLS_Encapsulation
!
interface Serial2/0
ip address 192.168.3.22 255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0 force
!
end
PE2 Router:
ip cef
!
mpls label protocol ldp
!
interface Loopback0
ip address 2.2.2.2 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
description Connected to CE2
xconnect 1.1.1.1 1000 encapsulation
mpls
!
interface Serial2/0
ip address 192.168.3.21
255.255.255.252
ip ospf 1 area 0
tag-switching ip
!
router ospf 1
!
tag-switching tdp router-id Loopback0
force
!
end
! ! ! ! !
Success rate is 100 percent (5/5), round-trip min/avg/max = 64/118/236 ms
**CE2#ping 50.50.50.1**
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 50.50.50.1, timeout is 2 seconds:
! ! ! ! !
Success rate is 100 percent (5/5), round-trip min/avg/max = 104/172/248 ms
**PE1#show mpls l2transport vc**
Local intf Local circuit Dest address VC ID Status
------------ --------------- ------------------- ------------ ------
Fa0/0 Ethernet 2.2.2.2 1000 UP
**PE2#show mpls l2transport vc**
Local intf Local circuit Dest address VC ID Status
------------ --------------- ------------------- ------------ ------
Fa0/0 Ethernet 1.1.1.1 1000 UP
**PE1#debug mpls l2transport signaling message**
AToM LDP message debugging is on
00:01:14: AToM LDP [2.2.2.2]: Sending label mapping msg
vc type 5, cbit 1, vc id 1000, group id 0, vc label 16, status 0, mtu 1500
00:01:14: AToM LDP [2.2.2.2]: Received label mapping msg, id 8, graceful restart
instance 1
vc type 5, cbit 1, vc id 1000, group id 0, vc label 16, status 0, mtu 1500
**NOTE:** As seen above VC labels are exchanged between PE routers after the targeted-LDP session is established. It
also shows each peer sends a Label Mapping message which contains FEC TLV, Label TLV and optional interface
parameters. VC Type 5 indicates Ethernet Port mode.
**PE1#show mpls l2transport vc detai**
Local interface: Fa0/0 up, line protocol up, Ethernet up
Destination address: 2.2.2.2, VC ID: 1000, VC status: up
Next hop: point2point
Output interface: Se2/0, imposed label stack {18}
Create time: 00:12:43, last status change time: 00:12:15
Signaling protocol: LDP, peer 2.2.2.2:0 up
MPLS VC labels: local 18, remote 18
Group ID: local 0, remote 0
MTU: local 1500, remote 1500
Remote interface description: Connected to CE2
Sequencing: receive disabled, send disabled
VC statistics:
packet totals: receive 97, send 98
byte totals: receive 10984, send 11106
packet drops: receive 0, seq error 0, send 0
