Gateway Load Balancing Protocol

The Gateway Load Balancing Protocol (GLBP) is another Cisco proprietary protocol that enhances network reliability and optimizes load distribution in switching environments. Specifically designed for providing redundancy and load balancing for default gateways, GLBP enables multiple routers or layer 3 switches to work collaboratively, presenting a virtual IP address and a set of virtual MAC addresses to the connected devices. GLBP employs a round-robin algorithm to distribute traffic among the available routers, enhancing network utilization and preventing a single point of failure. In the event of a router failure, GLBP dynamically reassigns the load to the remaining routers, ensuring continuous network availability. This protocol is particularly beneficial in environments where maximizing network resources and minimizing downtime are critical considerations. The integration of GLBP with switching technologies contributes to the creation of highly available and efficient network infrastructures.

Lab:

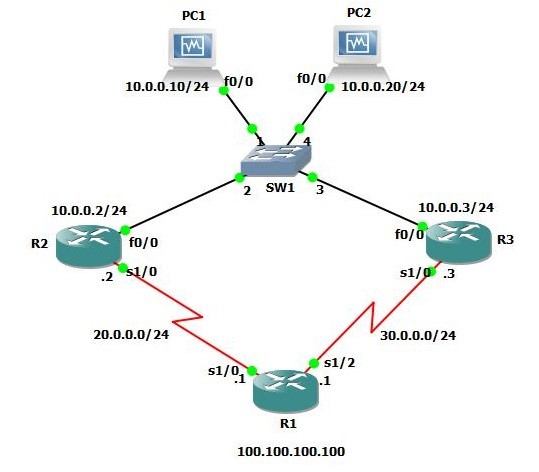

GLBP Topology

Task 1: Configure GLBP

Step 1: Configure GLBP Basic Configuration

PC1:
interface f0/0
ip address 10.0.0.10 255.255.255.0
no shutdown
exit

ip route 100.0.0.0 255.0.0.0 10.0.0.5

PC2:
interface f0/0
ip address 10.0.0.20 255.255.255.0
no shutdown
exit

ip route 100.0.0.0 255.0.0.0 10.0.0.5

R2:
interface f0/0
ip address 10.0.0.2 255.255.255.0
no shutdown
exit

interface serial 1/0
ip address 20.0.0.2 255.255.255.0
no shutdown
exit

ip route 100.0.0.0 255.0.0.0 20.0.0.4

int f0/0
glbp 1 ip 10.0.0.5
glbp 1 priority 100
glbp 1 preempt
glbp 1 load-balancing round-robin
glbp 1 timers msec 200 msec 700
exit

R3:
interface f0/0
ip address 10.0.0.3 255.255.255.0
no shutdown
exit

interface serial 1/0
ip address 30.0.0.3 255.255.255.0
no shutdown
exit

ip route 100.0.0.0 255.0.0.0 30.0.0.4

int f0/0
glbp 1 ip 10.0.0.5
glbp 1 priority 150
glbp 1 preempt
glbp 1 load-balancing round-robin
glbp 1 timers msec 200 msec 700
exit

R1: interface serial 1/0
ip address 20.0.0.1 255.255.255.0
no shutdown
exit

interface serial 1/2
ip address 30.0.0.1 255.255.255.0
no shutdown
exit

interface loopback 1
ip address 100.100.100.100 255.255.255.0
exit

ip route 0.0.0.0 0.0.0.0 20.0.0.2
ip route 0.0.0.0 0.0.0.0 30.0.0.3

Task 2: Verification

Step 1: Verify Gateway State and GLBP Round Robin Load Balancing

R2:
R2#show glbp
FastEthernet0/0 - Group 1
State is Standby
7 state changes, last state change 00:00:51
Virtual IP address is 10.0.0.5
Hello time 200 msec, hold time 700 msec
Next hello sent in 0.092 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is 10.0.0.3, priority 150 (expires in 0.520 sec)
Standby is local
Priority 100 (default)
Weighting 100 (default 100), thresholds: lower 1, upper 100
Load balancing: round-robin
Group members:
c202.11ec.0000 (10.0.0.2) local
c203.11ec.0000 (10.0.0.3)
There are 2 forwarders (1 active)
Forwarder 1
State is Active
1 state change, last state change 00:10:27
MAC address is 0007.b400.0101 (default)
Owner ID is c202.11ec.0000
Preemption enabled, min delay 30 sec
Active is local, weighting 100
Forwarder 2
State is Listen
2 state changes, last state change 00:01:26
MAC address is 0007.b400.0102 (learnt)
Owner ID is c203.11ec.0000
Time to live: 14399.936 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.3 (primary), weighting 100 (expires in 0.656 sec)

R3:
R3#show glbp
FastEthernet0/0 - Group 1
State is Active
1 state change, last state change 00:06:18
Virtual IP address is 10.0.0.5
Hello time 200 msec, hold time 700 msec
Next hello sent in 0.024 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is local
Standby is 10.0.0.2, priority 100 (expires in 0.588 sec)
Priority 150 (configured)
Weighting 100 (default 100), thresholds: lower 1, upper 100
Load balancing: round-robin
Group members:
c202.11ec.0000 (10.0.0.2)
c203.11ec.0000 (10.0.0.3) local
There are 2 forwarders (1 active)
Forwarder 1
State is Listen
4 state changes, last state change 00:04:43
MAC address is 0007.b400.0101 (learnt)
Owner ID is c202.11ec.0000
Redirection enabled, 599.868 sec remaining (maximum 600 sec)
Time to live: 14399.848 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.2 (primary), weighting 100 (expires in 0.536 sec)
Forwarder 2
State is Active
1 state change, last state change 00:06:24
MAC address is 0007.b400.0102 (default)
Owner ID is c203.11ec.0000
Redirection enabled
Preemption enabled, min delay 30 sec
Active is local, weighting 100

R2:
R2#show glbp brief
Interface Grp Fwd Pri State Address Active router Standby router
Fa0/0 1 - 100 Standby 10.0.0.5 10.0.0.3 local
Fa0/0 1 1 - Active 0007.b400.0101 local -
Fa0/0 1 2 - Listen 0007.b400.0102 10.0.0.3 -

R3#show glbp brief
Interface Grp Fwd Pri State Address Active router Standby router
Fa0/0 1 - 150 Active 10.0.0.5 local 10.0.0.2
Fa0/0 1 1 - Listen 0007.b400.0101 10.0.0.2 -
Fa0/0 1 2 - Active 0007.b400.0102 local -

PC1#show arp
Protocol Address Age (min) Hardware Addr Type Interface
Internet 10.0.0.10 - c206.11ec.0000 ARPA FastEthernet0/0

PC2#show arp
Protocol Address Age (min) Hardware Addr Type Interface
Internet 10.0.0.20 - c207.0c70.0000 ARPA FastEthernet0/0

PC2:
PC2#debug arp
ARP packet debugging is on
PC2#ping 100.100.100.100

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:

*Mar 1 00:50:16.067: IP ARP: creating incomplete entry for IP address: 10.0.0.5
interface FastEthernet0/0
*Mar 1 00:50:16.071: IP ARP: sent req src 10.0.0.20 c207.0c70.0000,
 dst 10.0.0.5 0000.0000.0000 FastEthernet0/0
*Mar 1 00:50:16.199: IP ARP: rcvd rep src 10.0.0.5 0007.b400.0101, dst 10.0.0.20
FastEthernet0/0.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 128/184/220 ms

PC1:
PC1#debug arp
ARP packet debugging is on
PC1#
PC1#ping 100.100.100.100

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:

*Mar 1 00:52:04.131: IP ARP: creating incomplete entry for IP address: 10.0.0.5
interface FastEthernet0/0
*Mar 1 00:52:04.131: IP ARP: sent req src 10.0.0.10 c206.11ec.0000,
 dst 10.0.0.5 0000.0000.0000 FastEthernet0/0
*Mar 1 00:52:04.307: IP ARP: rcvd rep src 10.0.0.5 0007.b400.0102, dst 10.0.0.10
FastEthernet0/0.
*Mar 1 00:52:06.271: IP ARP: rcvd req src 10.0.0.2 c202.11ec.0000, dst 10.0.0.10
FastEthernet0/0
*Mar 1 00:52:06.275: IP ARP: creating entry for IP address: 10.0.0.2, hw:
c202.11ec.0000
*Mar 1 00:52:06.275: IP ARP: sent rep src 10.0.0.10 c206.11ec.0000,
 dst 10.0.0.2 c202.11ec.0000 FastEthernet0/0.!!!
Success rate is 60 percent (3/5), round-trip min/avg/max = 156/194/220 ms

GLBP Load balancing is done by using Round Robin

Task 3: GLBP Weighted Load balancing

Step 1: Configure GLBP Load balancing based on Weight

R2:
int f0/0
glbp 1 weighting 120
glbp 1 load-balancing weighted
exit

R3:
int f0/0
glbp 1 weighting 110
glbp 1 load-balancing weighted
exit

Step 2: Verify GLBP Weighted Load balancing

R2:
R2#show glbp
FastEthernet0/0 - Group 1
State is Standby
16 state changes, last state change 00:14:24
Virtual IP address is 10.0.0.5
Hello time 200 msec, hold time 700 msec
Next hello sent in 0.088 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is 10.0.0.3, priority 150 (expires in 0.508 sec)
Standby is local
Priority 100 (default)
Weighting 120 (configured 120), thresholds: lower 1, upper 120
Load balancing: weighted
Group members:
c202.11ec.0000 (10.0.0.2) local
c203.11ec.0000 (10.0.0.3)
There are 2 forwarders (1 active)
Forwarder 1
State is Active
1 state change, last state change 00:59:08
MAC address is 0007.b400.0101 (default)
Owner ID is c202.11ec.0000
Preemption enabled, min delay 30 sec
Active is local, weighting 120
Forwarder 2
State is Listen
8 state changes, last state change 00:14:27
MAC address is 0007.b400.0102 (learnt)
Owner ID is c203.11ec.0000
Time to live: 14399.776 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.3 (primary), weighting 110 (expires in 0.664 sec)

R3:
R3#show glbp
FastEthernet0/0 - Group 1
State is Active
1 state change, last state change 00:48:28
Virtual IP address is 10.0.0.5
Hello time 200 msec, hold time 700 msec
Next hello sent in 0.100 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is local
Standby is 10.0.0.2, priority 100 (expires in 0.480 sec)
Priority 150 (configured)
Weighting 110 (configured 110), thresholds: lower 1, upper 110
Load balancing: weighted
Group members:
c202.11ec.0000 (10.0.0.2)
c203.11ec.0000 (10.0.0.3) local
There are 2 forwarders (1 active)
Forwarder 1
State is Listen
6 state changes, last state change 00:12:19
MAC address is 0007.b400.0101 (learnt)
Owner ID is c202.11ec.0000
Redirection enabled, 599.776 sec remaining (maximum 600 sec)
Time to live: 14399.848 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.2 (primary), weighting 120 (expires in 0.604 sec)
Client selection count: 1
Forwarder 2
State is Active
1 state change, last state change 00:48:43
MAC address is 0007.b400.0102 (default)
Owner ID is c203.11ec.0000
Redirection enabled
Preemption enabled, min delay 30 sec
Active is local, weighting 110
Client selection count: 1

R2#debug glbp
GLBP debugging is on
R2#
*Mar 1 00:04:49.323: GLBP: Fa0/0 Grp 1 Hello in VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
*Mar 1 00:04:49.559: GLBP: Fa0/0 Grp 1 Hello out VG Standby pri 100 vIP 10.0.0.5
hello 3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101
R2#
*Mar 1 00:04:52.335: GLBP: Fa0/0 Grp 1 Hello in VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
*Mar 1 00:04:52.563: GLBP: Fa0/0 Grp 1 Hello out VG Standby pri 100 vIP 10.0.0.5
hello 3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101

R3#debug glbp
GLBP debugging is on
*Mar 1 01:36:46.471: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
*Mar 1 01:36:46.979: GLBP: Fa0/0 Grp 1 Hello in VG Standby pri 100 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101
R3#
*Mar 1 01:36:49.475: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
*Mar 1 01:36:49.971: GLBP: Fa0/0 Grp 1 Hello in VG Standby pri 100 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101

PC1:
PC1#debug arp
ARP packet debugging is on
PC1#ping 100.100.100.100

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:

*Mar 1 00:23:43.279: IP ARP: creating incomplete entry for IP address: 10.0.0.5
interface FastEthernet0/0
*Mar 1 00:23:43.283: IP ARP: sent req src 10.0.0.10 c203.0c90.0000,
 dst 10.0.0.5 0000.0000.0000 FastEthernet0/0
*Mar 1 00:23:43.483: IP ARP: rcvd rep src 10.0.0.5 0007.b400.0101, dst 10.0.0.10
FastEthernet0/0..
*Mar 1 00:23:45.627: IP ARP: rcvd req src 10.0.0.2 c201.0c90.0000, dst 10.0.0.10
FastEthernet0/0
*Mar 1 00:23:45.635: IP ARP: creating entry for IP address: 10.0.0.2, hw:
c201.0c90.0000
*Mar 1 00:23:45.635: IP ARP: sent rep src 10.0.0.10 c203.0c90.0000,
 dst 10.0.0.2 c201.0c90.0000 FastEthernet0/0!!!
Success rate is 60 percent (3/5), round-trip min/avg/max = 136/144/156 ms

PC2:
PC2#debug arp
ARP packet debugging is on
PC2#ping 100.100.100.100

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:

*Mar 1 00:24:54.939: IP ARP: creating incomplete entry for IP address: 10.0.0.5
interface FastEthernet0/0
*Mar 1 00:24:54.943: IP ARP: sent req src 10.0.0.20 c204.11cc.0000,
 dst 10.0.0.5 0000.0000.0000 FastEthernet0/0
*Mar 1 00:24:55.255: IP ARP: rcvd rep src 10.0.0.5 0007.b400.0102, dst 10.0.0.20
FastEthernet0/0.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 120/280/472 ms

PC1#traceroute 100.100.100.100
Type escape sequence to abort.
Tracing the route to 100.100.100.100

1 10.0.0.2 120 msec 136 msec 184 msec
2 20.0.0.1 272 msec 172 msec *

PC2#traceroute 100.100.100.100
Type escape sequence to abort.
Tracing the route to 100.100.100.100

1 10.0.0.3 516 msec 300 msec 68 msec
2 30.0.0.1 460 msec * 156 msec

GLBP Load balancing is done based on Weightage of Forwarder

Task 4: Verify GLBP Automatic Gateway Selection

Step 1: Shutdown one of the forwarder

R2
interface f0/0
shutdown

Step 2: Verify GLBP Automatic Gateway selection to Router 3

R3:
R3#debug glbp
GLBP debugging is on
*Mar 1 00:55:21.803: GLBP: Fa0/0 Grp 1 Hello in VG Standby pri 100 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101
*Mar 1 00:55:22.167: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
R3#
*Mar 1 00:55:34.759: GLBP: Fa0/0 1 Standby router is unknown, was 10.0.0.2
*Mar 1 00:55:34.763: GLBP: Fa0/0 1.1 Listen: g/Active timer expired
*Mar 1 00:55:34.763: GLBP: Fa0/0 1.1 Listen -> Active
*Mar 1 00:55:34.763: %GLBP-6-FWDSTATECHANGE: FastEthernet0/0 Grp 1 Fwd 1 state
Listen -> Active
R3#
*Mar 1 00:55:34.771: GLBP: Fa0/0 Grp 1 Hello out VF 1 Active pri 135 vMAC 0007.b400.0101
R3#
*Mar 1 00:55:37.187: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 135 vMAC 0007.b400.0101 VF 2 Active pri 167 vMAC
0007.b400.0102
R3#
*Mar 1 00:55:40.195: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 135 vMAC 0007.b400.0101 VF 2 Active pri 167 vMAC
0007.b400.0102

When forwarder 1 fails or link goes down, then forwarder 2 will support both its own Virtual MAC address as well as Virtual MAC address of the failed Forwarder 1 i.e. Forwarder 2 will Active for both PCs Now traffic will only forwarded by Forwarder 2 for both PCs

R3#show glbp
FastEthernet0/0 - Group 1
State is Active
1 state change, last state change 01:15:21
Virtual IP address is 10.0.0.5
Hello time 3 sec, hold time 10 sec
Next hello sent in 0.812 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is local
Standby is unknown
Priority 150 (configured)
Weighting 110 (configured 110), thresholds: lower 1, upper 110
Load balancing: weighted
Group members:
c202.0c90.0000 (10.0.0.3) local
There are 2 forwarders (2 active)
Forwarder 1
State is Active
5 state changes, last state change 00:32:14
MAC address is 0007.b400.0101 (learnt)
Owner ID is c201.0c90.0000
Redirection disabled
Time to live: 12455.732 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is local, weighting 110
Client selection count: 1
Forwarder 2
State is Active
1 state change, last state change 01:16:13
MAC address is 0007.b400.0102 (default)
Owner ID is c202.0c90.0000
Redirection enabled
Preemption enabled, min delay 30 sec
Active is local, weighting 110
Client selection count: 1

R3#show glbp brief
Interface   Grp   Fwd   Pri   State    Address          Active router    Standby router
Fa0/0       1     -     150   Active   10.0.0.5         local            unknown
Fa0/0       1     1      -    Active   0007.b400.0101   local             -
Fa0/0       1     2      -    Active   0007.b400.0102   local             -

Forwarder 2 will Active for both PCs Now traffic will only forwarded by Forwarder 2 for both PCs

PC1#ping 100.100.100.100
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 128/179/252 ms

PC1#traceroute 100.100.100.100
Type escape sequence to abort.
Tracing the route to 100.100.100.100
 1 10.0.0.3 76 msec 60 msec 92 msec
 2 30.0.0.1 80 msec * 184 msec

PC2#ping 100.100.100.100
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 128/179/252 ms

PC2#traceroute 100.100.100.100
Type escape sequence to abort.
Tracing the route to 100.100.100.100

1 10.0.0.3 76 msec 60 msec 92 msec
 2 30.0.0.1 80 msec * 184 msec

Task 5: Verify GLBP Automatic Gateway Selection when Serial link is down

Step 1: Shutdown the serial interface

R2:
interface serial 1/0
shutdown

R2#show glbp
FastEthernet0/0 - Group 1
State is Standby
1 state change, last state change 00:05:58
Virtual IP address is 10.0.0.5
Hello time 3 sec, hold time 10 sec
Next hello sent in 1.132 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is 10.0.0.3, priority 150 (expires in 7.872 sec)
Standby is local
Priority 100 (default)
Weighting 120 (configured 120), thresholds: lower 1, upper 120
Load balancing: weighted
Group members:
c201.0360.0000 (10.0.0.2) local
c202.0360.0000 (10.0.0.3)
There are 2 forwarders (1 active)
Forwarder 1
State is Listen
MAC address is 0007.b400.0101 (learnt)
Owner ID is c202.0360.0000
Time to live: 14397.872 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.3 (primary), weighting 110 (expires in 8.236 sec)
Forwarder 2
State is Active
1 state change, last state change 00:06:08
MAC address is 0007.b400.0102 (default)
Owner ID is c201.0360.0000
Preemption enabled, min delay 30 sec
Active is local, weighting 120

R3:
R3#debug glbp
GLBP debugging is on
R3#
*Mar 1 00:14:20.255: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101
*Mar 1 00:14:20.627: GLBP: Fa0/0 Grp 1 Hello in VG Standby pri 100 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102
R3#
*Mar 1 00:14:23.263: GLBP: Fa0/0 Grp 1 Hello out VG Active pri 150 vIP 10.0.0.5 hello
3000, hold 10000 VF 1 Active pri 167 vMAC 0007.b400.0101
*Mar 1 00:14:23.687: GLBP: Fa0/0 Grp 1 Hello in VG Standby pri 100 vIP 10.0.0.5 hello
3000, hold 10000 VF 2 Active pri 167 vMAC 0007.b400.0102

Step 2: Configure GLBP Track to track serial interface

R2:
track 1 interface serial 1/0 line-protocol
exit
interface FastEthernet 0/0
glbp 1 weighting 120 lower 1
glbp 1 weighting track 1 decrement 50
exit

Serial interface 1/0 is being tracked

interface serial 1/0
shutdown

*Mar 1 01:02:03.619: %TRACKING-5-STATE: 1 interface Se1/0 line-protocol Up->Down
R2(config-if)#exit
*Mar 1 01:02:05.579: %LINK-5-CHANGED: Interface Serial1/0, changed state to
administratively down
*Mar 1 01:02:06.579: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial1/0,
changed state to down

Step 3: Verify GLBP Automatic Gateway selection to Router 3 form Standby state to Active state

R2:
R2#show glbp
FastEthernet0/0 - Group 1
State is Standby
1 state change, last state change 02:35:43
Virtual IP address is 10.0.0.5
Hello time 3 sec, hold time 10 sec
Next hello sent in 2.004 secs
Redirect time 600 sec, forwarder timeout 14400 sec
Preemption enabled, min delay 0 sec
Active is 10.0.0.3, priority 150 (expires in 8.472 sec)
Standby is local
Priority 100 (default)
Weighting 70 (configured 120), thresholds: lower 1, upper 120
Track object 1 state Down decrement 50
Load balancing: weighted
Group members:
c201.0360.0000 (10.0.0.2) local
c202.0360.0000 (10.0.0.3)
There are 2 forwarders (1 active)
Forwarder 1
State is Listen
MAC address is 0007.b400.0101 (learnt)
Owner ID is c202.0360.0000
Time to live: 14398.476 sec (maximum 14400 sec)
Preemption enabled, min delay 30 sec
Active is 10.0.0.3 (primary), weighting 110 (expires in 7.864 sec)
Forwarder 2
State is Active
1 state change, last state change 02:36:05
MAC address is 0007.b400.0102 (default)
Owner ID is c201.0360.0000
Preemption enabled, min delay 30 sec
Active is local, weighting 70
