Internet Connectivity Through Route Leaking
Internet connectivity through route leaking is a technique used in networking to enable specific routes from a private network, such as those within a Virtual Private Network (VPN) or an isolated segment, to be selectively shared or "leaked" into the global Internet routing table. Typically implemented at the edge routers, this process involves controlled sharing of routes between the private network and the public Internet. Route leaking allows certain devices within the private network, like Customer Edge (CE) routers in a MPLS-based VPN, to access the Internet while maintaining the isolation of other network segments. This approach facilitates a more granular control over the traffic flow, allowing organizations to define policies for which routes should be leaked to the Internet and ensuring secure and efficient Internet connectivity for specific network segments while keeping others private. Careful configuration and policy implementation are essential to avoid potential security risks associated with route leaking and to ensure optimal network performance.

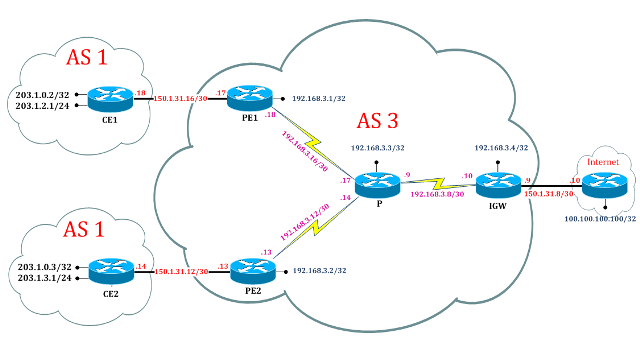

Lab:
Disclaimer
This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.
CE1 Router:
ip cef
!
interface Loopback0
ip address 203.1.0.1 255.255.255.255
!
interface Loopback1
ip address 203.1.1.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.31.18 255.255.255.252
!
router bgp 1
no synchronization
network 203.1.0.1 mask 255.255.255.255
network 203.1.1.0
redistribute connected
neighbor 150.1.31.17 remote-as 3
neighbor 150.1.31.17 allowas-in
no auto-summary
!
ip route 0.0.0.0 0.0.0.0 150.1.31.17
!
end
CE2 Router:
ip cef
!
interface Loopback0
ip address 203.1.0.2 255.255.255.255
!
interface Loopback1
ip address 203.1.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.31.14 255.255.255.252
!
router bgp 1
no synchronization
network 203.1.0.2 mask 255.255.255.255
network 203.1.2.0
redistribute connected
neighbor 150.1.31.13 remote-as 3
neighbor 150.1.31.13 allowas-in
no auto-summary
!
ip route 0.0.0.0 0.0.0.0 150.1.31.13
!
end
PE1 Router:
ip cef!
ip vrf vpna
rd 3:10
route-target export 3:10
route-target import 3:10
!
mpls label protocol ldp
!
interface Loopback1
ip address 192.168.3.1 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpna
ip address 150.1.31.17 255.255.255.252
!
interface Serial2/0
ip address 192.168.3.18 255.255.255.252
mpls ip
!
router ospf 1
redistribute static subnets
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
neighbor 192.168.3.2 remote-as 3
neighbor 192.168.3.2 update-source Loopback1
neighbor 192.168.3.4 remote-as 3
neighbor 192.168.3.4 update-source Loopback1
!
address-family ipv4
neighbor 192.168.3.2 activate
neighbor 192.168.3.2 next-hop-self
neighbor 192.168.3.2 soft-reconfiguration inbound
neighbor 192.168.3.4 activate
neighbor 192.168.3.4 next-hop-self
neighbor 192.168.3.4 soft-reconfiguration inbound
no auto-summary
no synchronization
network 192.168.3.1 mask 255.255.255.255
exit-address-family
!
address-family vpnv4
neighbor 192.168.3.2 activate
neighbor 192.168.3.2 send-community extended
exit-address-family
!
address-family ipv4 vrf vpna
neighbor 150.1.31.18 remote-as 1
neighbor 150.1.31.18 activate
neighbor 150.1.31.18 as-override
no synchronization
exit-address-family
!
ip route 203.1.0.1 255.255.255.255 FastEthernet0/0
150.1.31.18
ip route 203.1.1.0 255.255.255.0 FastEthernet0/0
150.1.31.18
ip route vrf vpna 0.0.0.0 0.0.0.0 150.1.31.9 global
!
mpls ldp router-id Loopback1
!
end
PE2 Router:
ip cef
!
ip vrf vpna
rd 3:10
route-target export 3:10
route-target import 3:10
!
mpls label protocol ldp
!
interface Loopback1
ip address 192.168.3.2 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpna
ip address 150.1.31.13 255.255.255.252
!
interface Serial2/1
ip address 192.168.3.13 255.255.255.252
mpls ip
!
router ospf 1
redistribute static subnets
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
neighbor 192.168.3.1 remote-as 3
neighbor 192.168.3.1 update-source Loopback1
neighbor 192.168.3.4 remote-as 3
neighbor 192.168.3.4 update-source Loopback1
!
address-family ipv4
neighbor 192.168.3.1 activate
neighbor 192.168.3.1 next-hop-self
neighbor 192.168.3.1 soft-reconfiguration inbound
neighbor 192.168.3.4 activate
neighbor 192.168.3.4 next-hop-self
neighbor 192.168.3.4 soft-reconfiguration inbound
no auto-summary
no synchronization
network 192.168.3.2 mask 255.255.255.255
exit-address-family
!
address-family vpnv4
neighbor 192.168.3.1 activate
neighbor 192.168.3.1 send-community extended
exit-address-family
!
address-family ipv4 vrf vpna
neighbor 150.1.31.14 remote-as 1
neighbor 150.1.31.14 activate
neighbor 150.1.31.14 as-override
no synchronization
exit-address-family
!
ip route 203.1.0.2 255.255.255.255 FastEthernet0/0
150.1.31.14
ip route 203.1.2.0 255.255.255.0 FastEthernet0/0
150.1.31.14
ip route vrf vpna 0.0.0.0 0.0.0.0 150.1.31.9 global
!
mpls ldp router-id Loopback1
!
end
P Router:
ip cef
!
mpls label protocol ldp
!
interface Loopback1
ip address 192.168.3.3 255.255.255.255
!
interface Serial2/0
ip address 192.168.3.17 255.255.255.252
mpls ip
!
interface Serial2/1
ip address 192.168.3.14 255.255.255.252
mpls ip
!
interface Serial2/2
ip address 192.168.3.9 255.255.255.252
mpls ip
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
mpls ldp router-id Loopback1
!
end
IGW Router:
ip cef
!
mpls label protocol ldp
!
interface Loopback1
ip address 192.168.3.4 255.255.255.255
!
interface FastEthernet0/0
ip address 150.1.31.9 255.255.255.252
!
interface Serial2/2
ip address 192.168.3.10 255.255.255.252
mpls ip
!
router ospf 1
network 0.0.0.0 255.255.255.255 area 0
!
router bgp 3
no synchronization
network 192.168.3.4 mask 255.255.255.255
network 203.1.0.1 mask 255.255.255.255
network 203.1.0.2 mask 255.255.255.255
network 203.1.1.0
network 203.1.2.0
neighbor 150.1.31.10 remote-as 200
neighbor 150.1.31.10 soft-reconfiguration inbound
neighbor 192.168.3.1 remote-as 3
neighbor 192.168.3.1 update-source Loopback1
neighbor 192.168.3.1 next-hop-self
neighbor 192.168.3.1 soft-reconfiguration inbound
neighbor 192.168.3.2 remote-as 3
neighbor 192.168.3.2 update-source Loopback1
neighbor 192.168.3.2 next-hop-self
neighbor 192.168.3.2 soft-reconfiguration inbound
no auto-summary
!
mpls ldp router-id Loopback1
!
end
Internet Router:
ip cef
!
interface Loopback1
ip address 100.100.100.100 255.255.255.255
!
interface FastEthernet0/0
ip address 150.1.31.10 255.255.255.252
!
router bgp 200
no synchronization
network 100.100.100.100 mask 255.255.255.255
neighbor 150.1.31.9 remote-as 3
neighbor 150.1.31.9 soft-reconfiguration inbound
no auto-summary
!
end
Verification:
CE1#ping 100.100.100.100 source 203.1.1.1
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:Packet sent with a source address of
203.1.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 732/473/672 ms
CE2#ping 100.100.100.100 source 203.1.2.1
Sending 5, 100-byte ICMP Echos to 100.100.100.100, timeout is 2 seconds:
Packet sent with a source address of 203.1.2.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 388/595/1044 ms
PE1#show ip route vrf vpna
Routing Table: vpna
Gateway of last resort is 150.1.31.9 to network 0.0.0.0
B 203.1.2.0/24 [200/0] via 192.168.3.2, 00:13:54
B 203.1.1.0/24 [20/0] via 150.1.31.18, 00:14:00
203.1.0.0/32 is subnetted, 2 subnets
B 203.1.0.2 [200/0] via 192.168.3.2, 00:13:54
B 203.1.0.1 [20/0] via 150.1.31.18, 00:14:00
150.1.0.0/30 is subnetted, 2 subnets
B 150.1.31.12 [200/0] via 192.168.3.2, 00:13:54
C 150.1.31.16 is directly connected, FastEthernet0/0
S* 0.0.0.0/0 [1/0] via 150.1.31.9
INTERNET#show ip route
Gateway of last resort is not set
100.0.0.0/32 is subnetted, 1 subnets
C 100.100.100.100 is directly connected, Loopback1
B 203.1.2.0/24 [20/20] via 150.1.31.9, 00:16:47
B 203.1.1.0/24 [20/20] via 150.1.31.9, 00:16:47
203.1.0.0/32 is subnetted, 2 subnets
B 203.1.0.2 [20/20] via 150.1.31.9, 00:16:47
B 203.1.0.1 [20/20] via 150.1.31.9, 00:16:47
150.1.0.0/30 is subnetted, 1 subnets
C 150.1.31.8 is directly connected, FastEthernet0/0
192.168.3.0/32 is subnetted, 3 subnets
B 192.168.3.2 [20/0] via 150.1.31.9, 00:16:47
B 192.168.3.1 [20/0] via 150.1.31.9, 00:16:47
B 192.168.3.4 [20/0] via 150.1.31.9, 00:16:47
