OpenStack - Lab 1: Installing OpenStack (Single node) using Packstack
Installing OpenStack (Single node) using Packstack
In Lab 1: Installing OpenStack (Single Node) using Packstack, participants typically focus on the deployment and configuration of a basic OpenStack environment on a single node using the Packstack tool. Packstack is a utility that simplifies the installation process by automating the deployment of various OpenStack services. This lab involves setting up prerequisites, running the Packstack installer, and configuring essential parameters such as authentication credentials and networking options. Participants may also explore the OpenStack dashboard (Horizon) to verify the successful deployment of services like Nova, Glance, and Neutron. The lab aims to provide hands-on experience in quickly establishing a functional OpenStack environment on a single node, allowing participants to gain familiarity with the initial setup and configuration processes. Successful completion of Lab 1 equips participants with the foundational skills to deploy OpenStack using Packstack for testing and development purposes.
Lab:
Installing Openstack on CentOS with Packstack
Setup Linux environment
\# Create a user called 'stackuser' and allow super user privileges to it.
useradd stackuser
visudo
stackuser ALL=(ALL) NOPASSWD: ALL
# Login with 'stackuser' and manage services.
su - stackuser
sudo systemctl disable --now firewalld
sudo systemctl disable --now NetworkManager
sudo systemctl enable --now network
Setup static IP
\# Know your network card name.
ifconfig | less
Output of ‘ifconfig | less’ :
ens160 Link encap:Ethernet HWaddr 00:E0:81:C6:D5:35
RX packets:21107 errors:0 dropped:0 overruns:0 frame:0
TX packets:11464 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000 RX bytes:2243790 (2.1 MiB)
TX bytes:883788 (863.0 KiB)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:23309 errors:0 dropped:0 overruns:0 frame:0
X packets:23309 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0 RX bytes:7275573 (6.9 MiB)
TX bytes:7275573 (6.9 MiB)
\# Configure a static IP persistently.
sudo vi /etc/sysconfig/network-scripts/ifcfg-ens160
TYPE=ens160
BOOTPROTO=static
NAME=ens160
DEVICE=ens160
ONBOOT=yes
IPADDR="10.10.10.1" # Change this IP address to IP address of your desire
PREFIX="24"
GATEWAY="10.10.10.254" # Change this Gateway address to Gateway address of your desire
NM\_CONTROLLED=no
# Restart network service.
sudo systemctl restart network
# Set hostname of the server.
sudo hostnamectl set-hostname node1
sudo hostname node1
sudo echo "10.10.10.1 node1" >> /etc/hosts
# Check configured IP.
ifconfig ens160
Output of ‘ifconfig ens160’ :
ens160 Link encap:Ethernet HWaddr 00:E0:81:C6:D5:35
inet addr:10.10.10.1 Bcast:10.10.10.255 Mask:255.255.255.0
inet6 addr: fe80::2e0:81ff:fec6:d535/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:21107 errors:0 dropped:0 overruns:0 frame:0
TX packets:11464 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000 RX bytes:2243790 (2.1 MiB)
TX bytes:883788 (863.0 KiB)
Download Packstack for Openstack train version on CentOS using yum
\# Download and Enable YUM repository for Openstack-train.
sudo yum install -y centos-release-openstack-train
sudo yum-config-manager --enable openstack-train
sudo yum update -y
# Download and Install Packstack.
sudo yum install -y openstack-packstack
# Install Openstack-train using Packstack.
sudo packstack --allinone
Output of ‘packstack –allinone’ :
Additional information:
Welcome to the Packstack setup utilityThe installation log file is available at: /var/tmp/packstack/20200502-004510-oUvzLC/openstack-setup.log
Packstack changed given value to required value /root/.ssh/id_rsa.pubInstalling:
Clean Up [ DONE ]
Discovering ip protocol version [ DONE ]
Setting up ssh keys [ DONE ]
Preparing servers [ DONE ]
Pre installing Puppet and discovering hosts' details [ DONE ]
Preparing pre-install entries [ DONE ]
Setting up CACERT [ DONE ]
Preparing AMQP entries [ DONE ]
Preparing MariaDB entries [ DONE ]
Fixing Keystone LDAP config parameters to be undef if empty[ DONE ]
Preparing Keystone entries [ DONE ]
Preparing Glance entries [ DONE ]
Checking if the Cinder server has a cinder-volumes vg[ DONE ]
Preparing Cinder entries [ DONE ]
Preparing Nova API entries [ DONE ]
Creating ssh keys for Nova migration [ DONE ]
Gathering ssh host keys for Nova migration [ DONE ]
Preparing Nova Compute entries [ DONE ]
Preparing Nova Scheduler entries [ DONE ]
Preparing Nova VNC Proxy entries [ DONE ]
Preparing OpenStack Network-related Nova entries [ DONE ]
Preparing Nova Common entries [ DONE ]
Preparing Neutron LBaaS Agent entries [ DONE ]
Preparing Neutron API entries [ DONE ]
Preparing Neutron L3 entries [ DONE ]
Preparing Neutron L2 Agent entries [ DONE ]
Preparing Neutron DHCP Agent entries [ DONE ]
Preparing Neutron Metering Agent entries [ DONE ]
Checking if NetworkManager is enabled and running [ DONE ]
Preparing OpenStack Client entries [ DONE ]
Preparing Horizon entries [ DONE ]
Preparing Swift builder entries [ DONE ]
Preparing Swift proxy entries [ DONE ]
Preparing Swift storage entries [ DONE ]
Preparing Gnocchi entries [ DONE ]
Preparing Redis entries [ DONE ]
Preparing Ceilometer entries [ DONE ]
Preparing Aodh entries [ DONE ]
Preparing Puppet manifests [ DONE ]
Copying Puppet modules and manifests [ DONE ]
Applying 10.10.10.1_controller.pp
10.10.10.1_controller.pp: [ DONE ]
Applying 10.10.10.1_network.pp
10.10.10.1_network.pp: [ DONE ]
Applying 10.10.10.1_compute.pp
10.10.10.1_compute.pp: [ DONE ]
Applying Puppet manifests [ DONE ]
Finalizing [ DONE ]
**** Installation completed successfully ******
Additional information:
* A new answerfile was created in: /root/packstack-answers-20200502-004512.txt
* Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components.
* Warning: NetworkManager is active on 10.10.10.1. OpenStack networking currently does not work on systems that have the Network Manager service enabled.
* File /root/keystonerc_admin has been created on OpenStack client host 10.10.10.1. To use the command line tools you need to source the file.
* To access the OpenStack Dashboard browse to http://10.10.10.1/dashboard .
Please, find your login credentials stored in the keystonerc_admin in your home directory.
* The installation log file is available at: /var/tmp/packstack/20180502-004510-oUvzLC/openstack-setup.log
* The generated manifests are available at: /var/tmp/packstack/20180502-004510-oUvzLC/manifests
Verify
\# Get the admin password from 'keystonerc\_admin' file.
cat ~/keystonerc\_admin
Output :
export OS_USERNAME=admin
export OS_TENANT_NAME=admin
export OS_PASSWORD=cf98ff4cb9974b13
export OS_AUTH_URL=<http://10.10.10.1:35357/v2.0/>
export PS1='[\u@\h \W(keystone_admin)]$ '

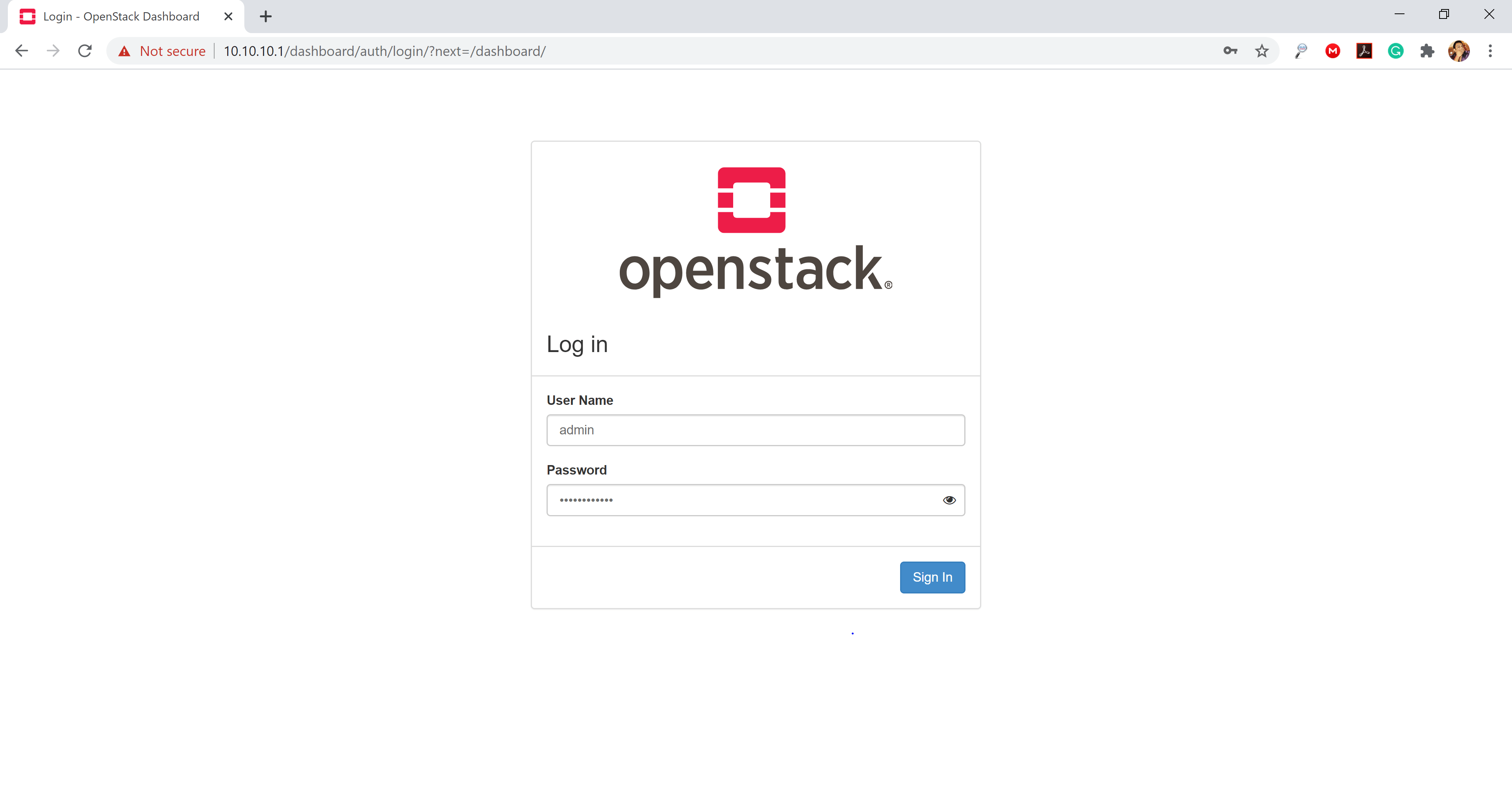

Sign-in with admin user on horizon dashboard using "http://10.10.10.1/dashboard" from a client machine.

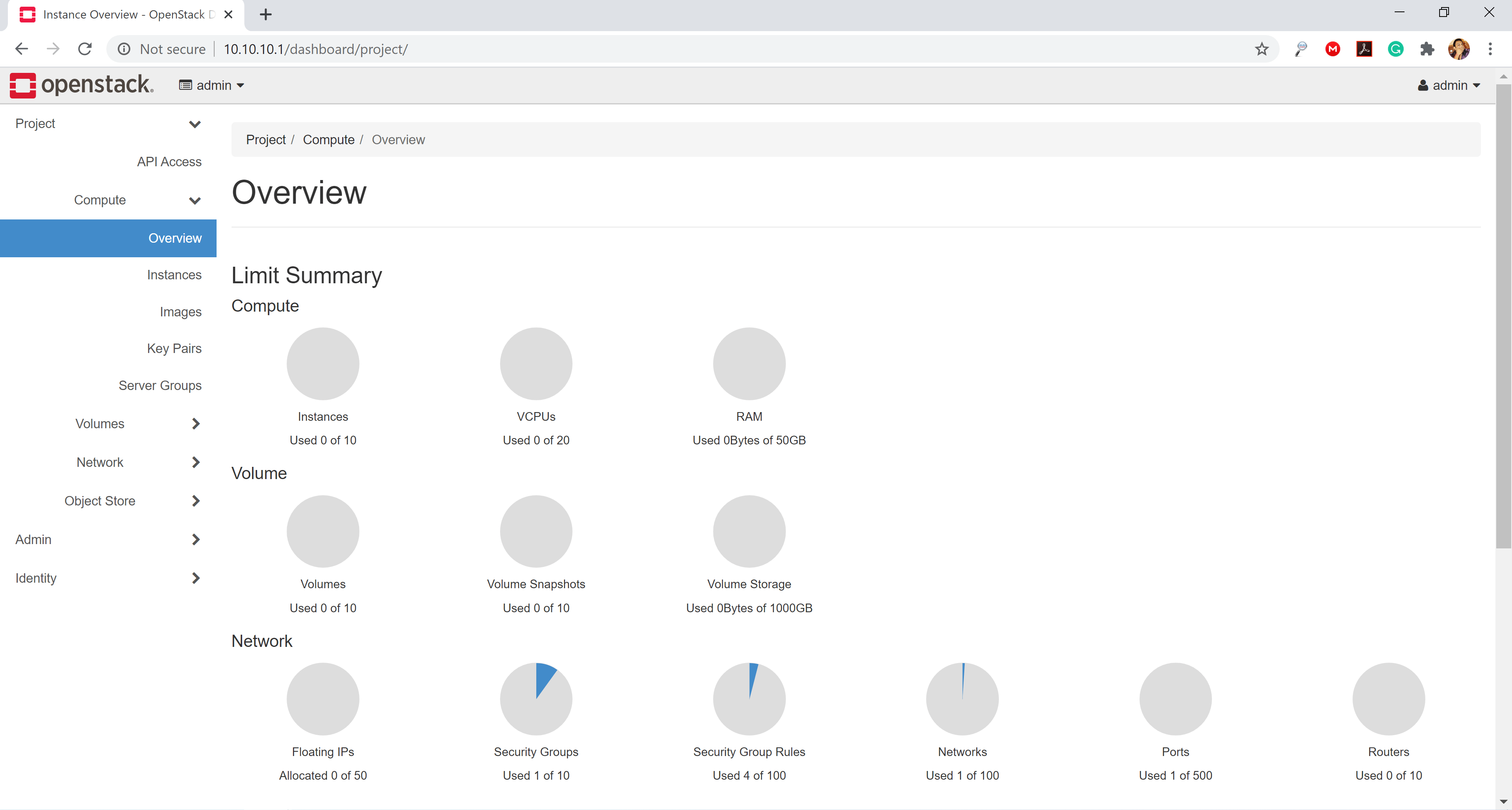

Your Openstack Cloud is ready for use.
