Multi-VRF or VRF-Lite

Multi-VRF, or VRF-Lite (Virtual Routing and Forwarding), is a technology used in networking to enable the creation of multiple independent routing tables within a single physical router. Each VRF functions as a separate routing instance, allowing the router to maintain distinct routing and forwarding tables for different network entities. This segmentation is valuable in scenarios where the same physical infrastructure needs to support multiple virtual networks or customers, ensuring logical isolation of routing information. Multi-VRF is often employed in service provider environments to offer managed services to various customers on a shared network infrastructure while maintaining separation and security. In addition to service providers, enterprises may use VRF-Lite to isolate different departments, projects, or tenants within their network, providing enhanced control over routing and improved network efficiency. Multi-VRF facilitates the coexistence of multiple independent routing domains on a single router, contributing to a more scalable and versatile network architecture.

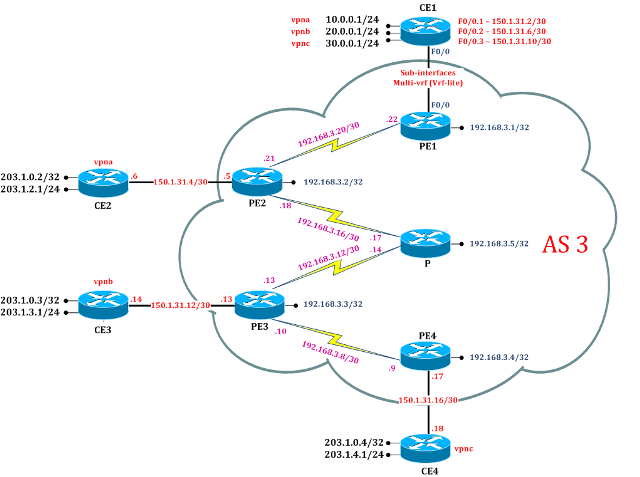

Lab:

Disclaimer

This Configuration Guide is designed to assist members to enhance their skills in particular technology area. While every effort has been made to ensure that all material is as complete and accurate as possible, the enclosed material is presented on an “as is” basis. Neither the authors nor Forum assume any liability or responsibility to any person or entity with respect to loss or damages incurred from the information contained in this guide. This configuration guide was developed by Forum. Any similarities between material presented in this configuration guide and any other material is completely coincidental.

CE1 Router:

ip cef
!
ip vrf vpna
rd 3:10
route-target export 3:10
route-target import 3:10
!
ip vrf vpnb
rd 3:20
route-target export 3:20
route-target import 3:20
!
ip vrf vpnc
rd 3:30
route-target export 3:30
route-target import 3:30
!
interface Loopback10
ip vrf forwarding vpna
ip address 10.0.0.1 255.255.255.0
!
interface Loopback11
ip vrf forwarding vpnb
ip address 20.0.0.1 255.255.255.0
!
interface Loopback12
ip vrf forwarding vpnc
ip address 30.0.0.1 255.255.255.0
!
interface FastEthernet0/0.1
encapsulation dot1Q 10
ip vrf forwarding vpna
ip address 150.1.40.2 255.255.255.252
!
interface FastEthernet0/0.2
encapsulation dot1Q 20
ip vrf forwarding vpnb
ip address 150.1.40.6 255.255.255.252
!
interface FastEthernet0/0.3
encapsulation dot1Q 30
ip vrf forwarding vpnc
ip address 150.1.40.10 255.255.255.252
!
router ospf 10 vrf vpna
capability vrf-lite
network 10.0.0.0 0.0.0.255 area 0
network 150.1.40.0 0.0.0.3 area 0
!
router ospf 20 vrf vpnb
capability vrf-lite
network 20.0.0.0 0.0.0.255 area 0
network 150.1.40.4 0.0.0.3 area 0
!
router ospf 30 vrf vpnc
capability vrf-lite
network 30.0.0.0 0.0.0.255 area 0
network 150.1.40.8 0.0.0.3 area 0
!
end

CE2 Router:

interface Loopback0
ip address 203.1.0.2 255.255.255.255
!
interface Loopback1
ip address 203.1.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.31.6 255.255.255.252
!
router ospf 10
network 0.0.0.0 255.255.255.255 area 0
!
end

CE3 Router:

interface Loopback0
ip address 203.1.0.3 255.255.255.255
!
interface Loopback1
ip address 203.1.3.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.31.14 255.255.255.252
!
router ospf 20
network 0.0.0.0 255.255.255.255 area 0
!
end

CE4 Router:

interface Loopback0
ip address 203.1.0.4 255.255.255.255
!
interface Loopback1
ip address 203.1.4.1 255.255.255.0
!
interface FastEthernet0/0
ip address 150.1.31.18 255.255.255.252
!
router ospf 30
network 0.0.0.0 255.255.255.255 area 0
!
end

PE1 Router:

ip cef
!
ip vrf vpna
rd 3:10
route-target export 3:10
route-target import 3:10
!
ip vrf vpnb
rd 3:20
route-target export 3:20
route-target import 3:20
!
ip vrf vpnc
rd 3:30
route-target export 3:30
route-target import 3:30
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.1 255.255.255.255
no ip directed-broadcast
!
interface FastEthernet0/0.1
encapsulation dot1Q 10
ip vrf forwarding vpna
ip address 150.1.40.1 255.255.255.252
no ip directed-broadcast
!
interface FastEthernet0/0.2
encapsulation dot1Q 20
ip vrf forwarding vpnb
ip address 150.1.40.5 255.255.255.252
no ip directed-broadcast
!
interface FastEthernet0/0.3
encapsulation dot1Q 30
ip vrf forwarding vpnc
ip address 150.1.40.9 255.255.255.252
no ip directed-broadcast
!
interface Serial2/0
description *** Link to PE2 ***
ip address 192.168.3.22 255.255.255.252
tag-switching ip
!
router ospf 10 vrf vpna
redistribute bgp 3 subnets
network 150.1.40.0 0.0.0.3 area 0
!
router ospf 20 vrf vpnb
redistribute bgp 3 subnets
network 150.1.40.4 0.0.0.3 area 0
!
router ospf 30 vrf vpnc
redistribute bgp 3 subnets
network 150.1.40.8 0.0.0.3 area 0
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
no synchronization
bgp log-neighbor-changes
network 192.168.3.1 mask 255.255.255.255
neighbor 192.168.3.2 remote-as 3
neighbor 192.168.3.2 update-source
Loopback0
no auto-summary
!
address-family vpnv4
neighbor 192.168.3.2 activate
neighbor 192.168.3.2 send-community
extended
exit-address-family
!
address-family ipv4 vrf vpnc
redistribute ospf 30 vrf vpnc
no synchronization
exit-address-family
!
address-family ipv4 vrf vpnb
redistribute ospf 20 vrf vpnb
no synchronization
exit-address-family
!
address-family ipv4 vrf vpna
redistribute ospf 10 vrf vpna
no synchronization
exit-address-family
!
tag-switching tdp router-id Loopback0
end

P Router:

ip cef
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.5 255.255.255.255
no ip directed-broadcast
!
interface Serial2/0
ip address 192.168.3.14 255.255.255.252
tag-switching ip
!
interface Serial2/1
ip address 192.168.3.17 255.255.255.252
tag-switching ip
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
tag-switching tdp router-id Loopback0
!
end

PE3 Router:

ip cef
!
ip vrf vpnb
rd 3:20
route-target export 3:20
route-target import 3:20
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.3 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpnb
ip address 150.1.31.13 255.255.255.252
!
interface Serial2/0
ip address 192.168.3.13 255.255.255.252
tag-switching ip
!
interface Serial2/1
ip address 192.168.3.10 255.255.255.252
tag-switching ip
!
router ospf 20 vrf vpnb
redistribute bgp 3 subnets
network 150.1.0.0 0.0.255.255 area 0
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
no synchronization
network 192.168.3.3 mask 255.255.255.255
neighbor 192.168.3.2 remote-as 3
neighbor 192.168.3.2 update-source Loopback0
neighbor 192.168.3.2 route-reflector-client
neighbor 192.168.3.4 remote-as 3
neighbor 192.168.3.4 update-source Loopback0
neighbor 192.168.3.4 route-reflector-client
no auto-summary
!
address-family vpnv4
neighbor 192.168.3.2 activate
neighbor 192.168.3.2 send-community extended
neighbor 192.168.3.4 activate
neighbor 192.168.3.4 send-community extended
neighbor 192.168.3.4 route-reflector-client
exit-address-family
!
address-family ipv4 vrf vpnb
redistribute ospf 20 vrf vpnb
no synchronization
exit-address-family
!
tag-switching tdp router-id Loopback0
!
end

PE2 Router:

ip cef
!
ip vrf vpna
rd 3:10
route-target export 3:10
route-target import 3:10
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.2 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpna
ip address 150.1.31.5 255.255.255.252
!
interface Serial2/0
ip address 192.168.3.21 255.255.255.252
tag-switching ip
!
interface Serial2/1
ip address 192.168.3.18 255.255.255.252
tag-switching ip
!
router ospf 10 vrf vpna
redistribute bgp 3 subnets
network 150.1.0.0 0.0.255.255 area 0
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
no synchronization
network 192.168.3.2 mask 255.255.255.255
neighbor 192.168.3.1 remote-as 3
neighbor 192.168.3.1 update-source
Loopback0
neighbor 192.168.3.1 route-reflector-client
neighbor 192.168.3.3 remote-as 3
neighbor 192.168.3.3 update-source
Loopback0
neighbor 192.168.3.3 route-reflector-client
no auto-summary
!
address-family vpnv4
neighbor 192.168.3.1 activate
neighbor 192.168.3.1 send-community
extended
neighbor 192.168.3.1 route-reflector-client
neighbor 192.168.3.3 activate
neighbor 192.168.3.3 send-community
extended
exit-address-family
address-family ipv4 vrf vpna
redistribute ospf 10 vrf vpna
no synchronization
exit-address-family
!
tag-switching tdp router-id Loopback0
!
end

PE4 Router:

ip cef
!
ip vrf vpnc
rd 3:30
route-target export 3:30
route-target import 3:30
!
mpls label protocol ldp
!
interface Loopback0
ip address 192.168.3.4 255.255.255.255
!
interface FastEthernet0/0
ip vrf forwarding vpnc
ip address 150.1.31.17 255.255.255.252
!
interface Serial2/1
ip address 192.168.3.9 255.255.255.252
tag-switching ip
!
router ospf 30 vrf vpnc
redistribute bgp 3 subnets
network 150.1.0.0 0.0.255.255 area 0
!
router ospf 1
network 192.168.3.0 0.0.0.255 area 0
!
router bgp 3
no synchronization
network 192.168.3.4 mask 255.255.255.255
neighbor 192.168.3.3 remote-as 3
neighbor 192.168.3.3 update-source
Loopback0
no auto-summary
!
address-family vpnv4
neighbor 192.168.3.3 activate
neighbor 192.168.3.3 send-community
extended
exit-address-family
!
address-family ipv4 vrf vpnc
redistribute ospf 30 vrf vpnc
no synchronization
exit-address-family
!
tag-switching tdp router-id Loopback0
!
end
