Lab 2 – Windows Server 2016 Basic Configuration and Settings

Lab 2 – Windows Server 2016 Basic Configuration and Settings

Active Directory Domain Controller Hardware Requirements

Minimum

  • 1.4Ghz 64-bit processor or faster
  • 512MB of RAM or greater
  • 32GB of disk space or greater
  • Ethernet network adapter

Recommended

  • 2-Core CPU
  • 8GB RAM
  • 60GB Thin Provisioned Disk
  • VMXNET3 Network Adapter

[Note: it really depends on what you’re running on the Domain Controller and how large of an organization it’s supporting. ]

  1. First we need to open the Start Menu and then click to open Server Manager.

Output

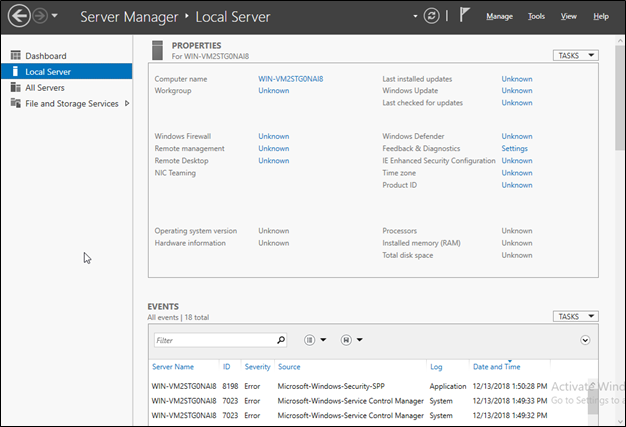

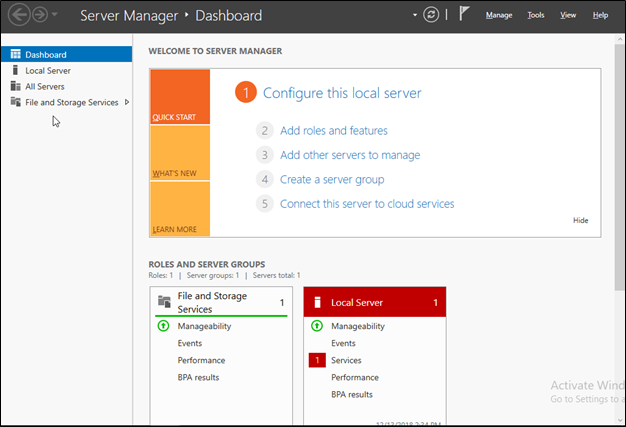

From Server Manager we click Configure this local server.

  • On the Local Server Properties page we have links to most of the things we need to change first thing.  After each item is configured we’ll be jumping back to this page to move onto the next configuration item.

2.  By clicking on the Computer name or Workgroup we get the System Properties dialog.

Output

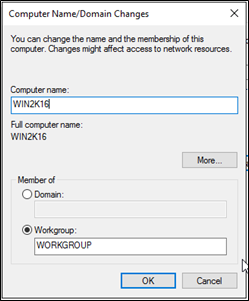

3. Clicking the Change button we get the Computer Name/Domain Changes dialog.  Here we change the Computer name to what we want the Domain Controller to be named and click OK.

Output

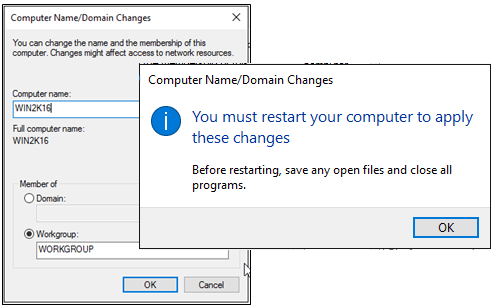

4. After clicking OK we get another dialog indicating we will need to restart for the changes to be applied.

Output

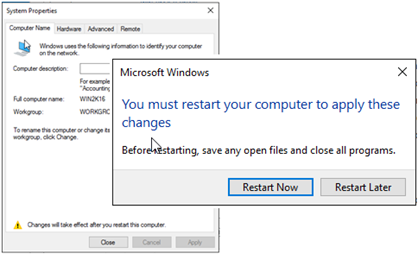

5. Now the changes will take effect after we restart this computer. If we hit close button we will get another dialog box indicating if we want to Restart Now or Restart Later.  You can restart now or wait until we’ve completed all the changes to reboot.

Output

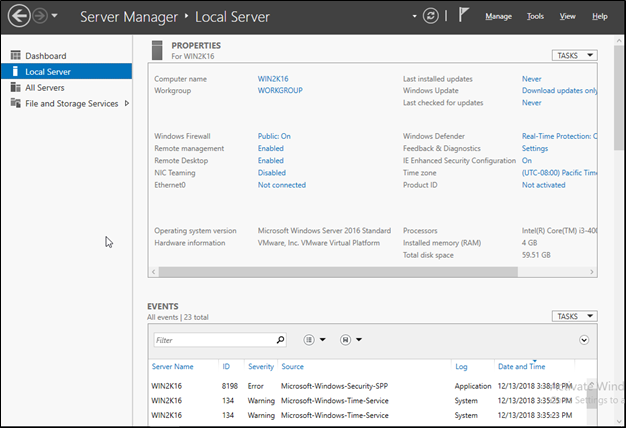

6. On the Local System Properties in Server Manager we click Remote Desktop.

Output

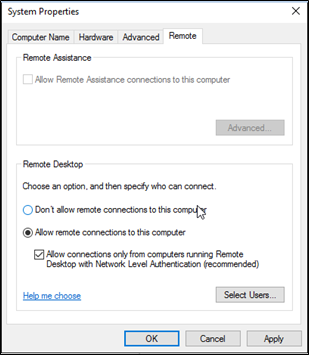

7. This takes us to the Remote tab on System Properties and we click the radio button for Allow remote connections to this computer to enable Remote Desktop.

Output

8. On the Local System Properties in Server Manager we click on the Ethernet Adapter which brings us to the Network Connections window.

Output

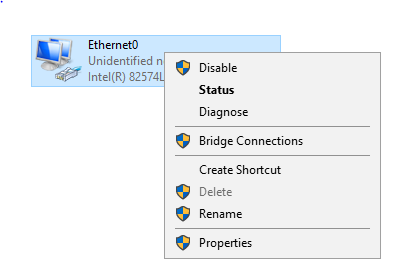

9. Right-click the Ethernet adapter and click Properties

Output

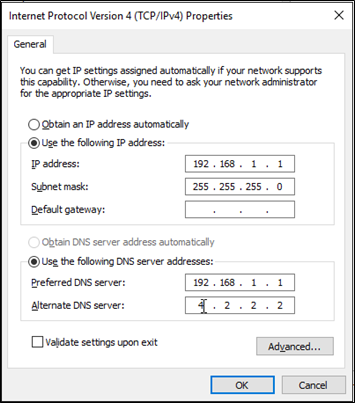

10. From there we click on the IPv4 Properties where we set the IP addressSubnetMask and DefaultGateway.  We also set the Preferred and Alternate DNS.

Output

[Note: since this is our first Active Directory Domain Controller and it’s our first DNS server we need to set the Preferred DNS to the servers own IP and the Alternate DNS to an external DNS source to get started.]

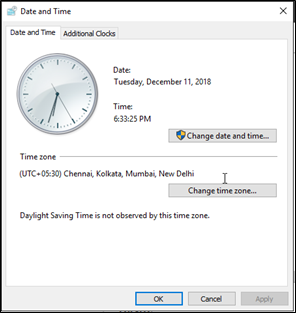

11. On the Local System Properties in Server Manager we click on the Time Zone which brings us to the Date and Time dialog.

Output

12. We set the local date, time and time zone as necessary here and click OK.

Output

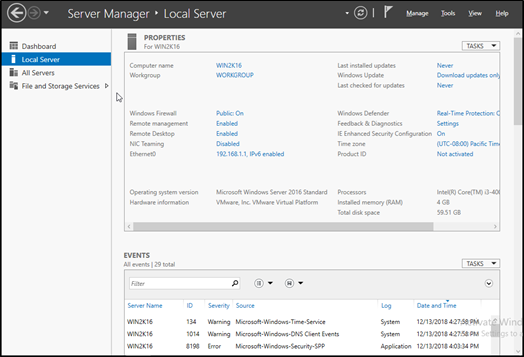

13. On the Local System Properties in Server Manager we click on the IE Enhanced Security Configuration.

Output

14. We need to set the Administrators option to Off.  This allows Internet Explorer to open webpages without a bunch of crazy prompts for Administrator users.

Output

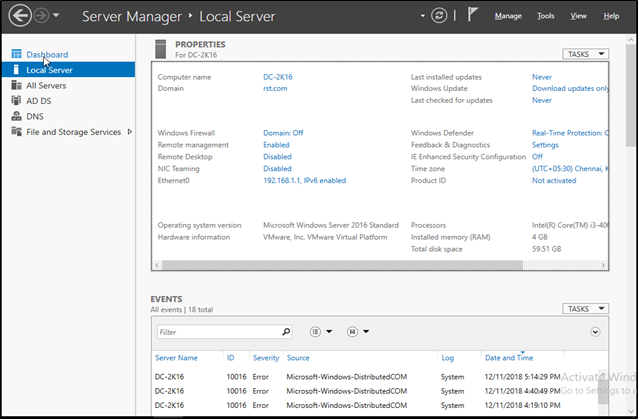

15. On the Local System Properties in Server Manager we click on the Feedback & Diagnostics Settings.

Output

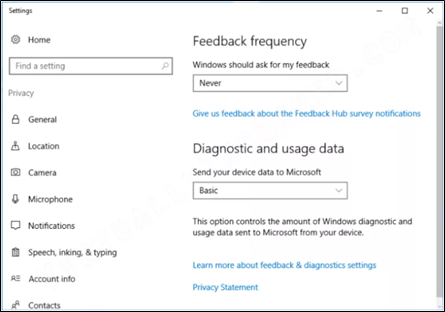

16. Here you should set the Feedback Frequency option to Never and the Diagnostic and usage data to Basic

Output

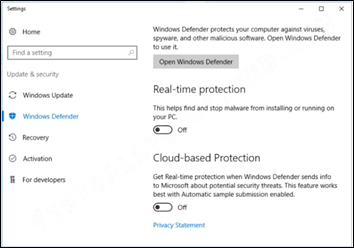

17. On the Local System Properties in Server Manager we click on the Windows Defender option.

Output
